5.2.3 - TN-S system

This is probably the most usual earthing system in the UK, with the Electricity Supply Company providing an earth terminal at the incoming mains position. This earth terminal is connected by the supply protective conductor (PE) back to the star point (neutral) of the secondary winding of the supply transformer, which is also connected at that point to an earth electrode. The earth conductor usually takes the form of the armour and sheath (if applicable) of the underground supply cable. The system is shown diagrammatically in {Fig 5.5}.

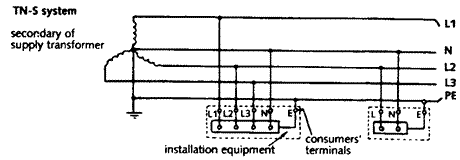

Fig 5.5 - TN-S earthing system
