SWA Armoured Cable Glands

  part of  Cable Accessories
Main Index   •   Technical   •   Quick Order Entry   •   My Account   •   Stock Availability   •   Delivery
View Your Basket Basket

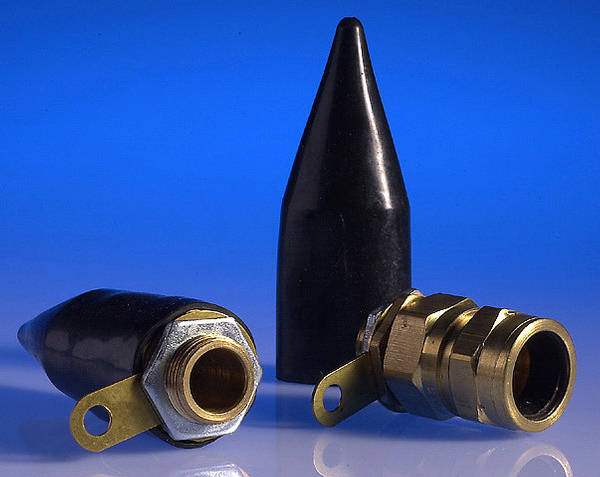

SWA Gland Packs ( BW ) - 2 Part
product photo
SWA Gland Packs ( BW ) - 2 Part
2 Part Internal Glands for SWA Cable
Terminates and secures cable amouring.
Gland size selection refer to the individual cable page
Click the order code for Accessories
Order Code Description Price (ex vat) Price (inc vat) Qty
TL B20SBW 20mm Small Gland Pack - 2 Part Internal
per Pairper Pair 10+
3.002.50
per Pairper Pair 10+
3.603.00
graphic
TL B20BW 20mm Gland Pack - 2 Part Internal - 2 Glands
per Pairper Pair 10+
3.002.50
per Pairper Pair 10+
3.603.00
graphic
TL B25BW 25mm Gland Pack - 2 Part Internal - 2 Glands
per Pairper Pair 10+
4.003.50
per Pairper Pair 10+
4.804.20
graphic
TL B32BW 32mm Gland Pack - 2 Part Internal - 2 Glands
per Pair
4.25
per Pair
5.10
graphic
TL B40BW 40mm Gland Pack - 2 Part Internal - 1 Gland
EA
4.80
EA
5.76
graphic
SWA Gland Packs ( CW ) 3 Part
product photo
SWA Gland Packs ( CW )
3 Part External / Internal Glands for SWA Cable
Terminates and secures cable amouring.
Provides a seal on outer sheath of the cable IP66
Gland size selection refer to the individual cable page
Click the order code for AccessoriesTechnical: IP Rating Chart
Order Code Description Price (ex vat) Price (inc vat) Qty
TL C20SCW 20mm Small Gland Pack - 3 Part External
per Pairper Pair 10+
5.004.50
per Pairper Pair 10+
6.005.40
graphic
TL C20CW 20mm Gland Pack - 3 Part External - 2 Glands
per Pairper Pair 10+
5.004.50
per Pairper Pair 10+
6.005.40
graphic
TL C25CW 25mm Gland Pack - 3 Part External - 2 Glands
per Pairper Pair 10+
8.007.50
per Pairper Pair 10+
9.609.00
graphic
TL C32CW 32mm Gland Pack - 3 Part External - 2 Glands
per Pair
10.00
per Pair
12.00
graphic
TL C40CW 40mm Gland Pack - 3 Part External - 1 Gland
EA
5.75
EA
6.90
graphic

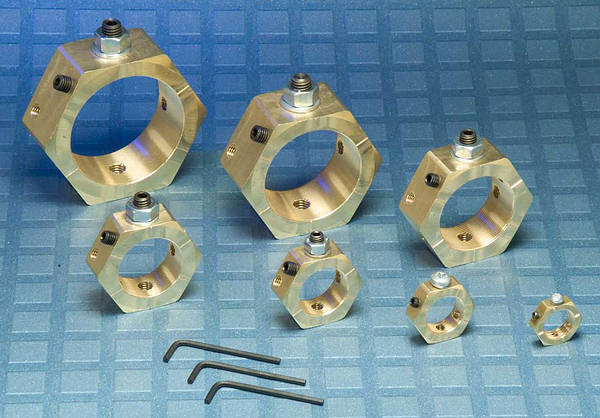

Piranha Earth Locking Nuts
product photo
Piranha Earth Locking Nuts
Piranha™ Earth Nuts Speed up the installation of cable glands
by replacing the earth tag and lock nut to provide a high integrity earth connection.

Supplied with:- Grub screw, screw / washer

*Allen key supplied with 20mm & 25mm - When purchased in qty’s of 10

  • The unique cutting teeth of the earth nut bite into box wall, enabling gland to be tightened with one tool from outside.
  • No extra drilling required which saves time and doesn’t compromise enclosure IP rating.
  • Facilitates a direct connection for protective earthing.
  • Grub screw secures nut to gland ensuring continuity especially when used with plastic enclosures even if box becomes damaged.
  • Nut can be reversed with smooth side to enclosure wall and tightened from inside where required.
  • May be used with a lock ring for direct earth connection to metal conduit in place of coupler & bush.
  • Gives greater confidence in using armour as protective conductor.
  • Solid Brass construction for use with plastic and metal enclosures.
Click the order code for AccessoriesTechnical: IP Rating Chart and Instructions - pdf 38kb
Order Code Description Price (ex vat) Price (inc vat) Qty
PR PEN20Piranha 20mm Earth Locking Nut
EAEA 3+
1.571.50
EAEA 3+
1.881.80
graphic
PR PEN25Piranha 25mm Earth Locking Nut
EAEA 3+
2.722.62
EAEA 3+
3.263.14
graphic
PR PEN32Piranha 32mm Earth Locking Nut
EAEA 3+
4.324.09
EAEA 3+
5.184.90
graphic
