TP&N Rotary Isolator Insulated Weatherproof - IP65
Loading …
TP&N Rotary Isolator Insulated Weatherproof - IP65
4 Pole Switched Neutral
4 Pole Switched Neutral
- EN 60947 Compliant
- IP65 Rating
- 4 x 20mm Knock-outs up to 40A
- 4 x 25mm on 63A - 100A
- Interlocking Lid Ensures Removal in OFF Position Only
- Padlockable Handles
- Easy Access & Switch Removal
- Flame Retardant Material
- RoHS Compliant
Technical:IP Rating Chart |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100 Amp TP&N Rotary Isolator
Loading …
Height: 240mm
Width: 155mm
Depth: 160mm

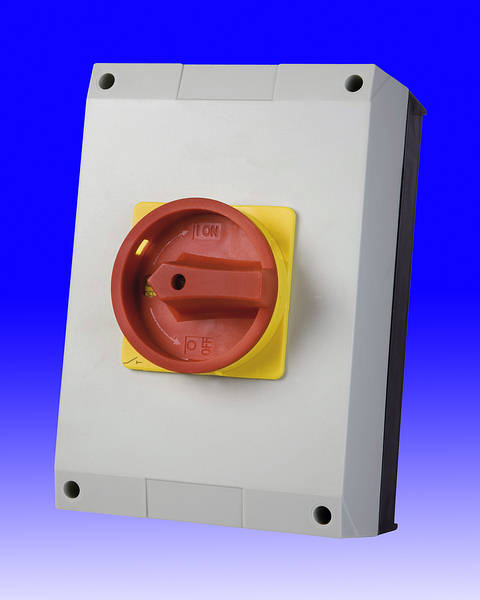

100 Amp TP&N Rotary Isolator
Insulated Weatherproof - IP65 - 4 Pole
Compact
Insulated Weatherproof - IP65 - 4 Pole
Compact
- 4 Pole 100A switch
- Type: 2 Way
- Solid neutral
- On load switch disconnectors
- Switch can be removed from DIN rail assembly
allowing quick and easy first fix - Interlocked front cover can only be removed
when in OFF position
- Lockable switch prevents tampering
- Weatherproof rating: IP65
- Operating voltage: 230V AC
- Operating temperature: 0º to 40º C
- Tough, durable thermoplastic construction
- Cable entry knockouts on enclosure
- Conforms to BS-EN 60947-3
Height: 240mm
Width: 155mm
Depth: 160mm
Technical:SMI4100 Instructions 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum TP Rotary Isolator / Switches
Loading …
See product for Accessories
Contactum Insulated Switches - IP65
‘M’ Type Three Pole Switches
‘M’ Type Three Pole Switches
- Removable gland plates top & bottom on switchfuses
- Cable entry knockouts on switches
- Fully rated AC23 on load switch disconnectors
- Interlocked handles are padlockable (up to three locks)
- To BS EN 60947-3
- Solid Neutral
- Light Grey finish
| See product for Accessories |
Technical:IP Rating Chart |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32A TP&N Rotary Switch Insulated Weatherproof - IP65 Special Offer |
|
Contactum 4 Pole DC Isolator - IP66
Loading …
Contactum
4 Pole DC Isolator - IP66
4 Pole DC Isolator - IP66
In photovoltaic applications, DC isolators are used to manually disconnect solar panels
for maintenance, installation or repair.
The panel needs to be isolated from the AC side, so a manually operated isolation switch
is placed between the panel and the inverter input. This type of switch is called a PV DC isolator
because it provides DC isolation between the photovoltaic panel and the rest of the system.
for maintenance, installation or repair.
The panel needs to be isolated from the AC side, so a manually operated isolation switch
is placed between the panel and the inverter input. This type of switch is called a PV DC isolator
because it provides DC isolation between the photovoltaic panel and the rest of the system.
- Function: isolation, control
- Number of poles: 4
- Rated voltage (Ue): 1200V DC
- Rated current (In): 16A or 32A
- Rated insulation voltage (Ui): 1200V DC
- Rated impulse voltage: (Uimp): 8kV
- Mechanical life: 20000 operations
- Screw torque (Nm): 1.2Nm
- Cable size (mm²): 4-16mm²
- Protection level: IP66
- Ambient operating temperature: -25°C to 85°C
- Standards: IEC60947-3, DC-21B
Technical:DC Isolators Datasheet - 660kb pdf |
|
