- Application

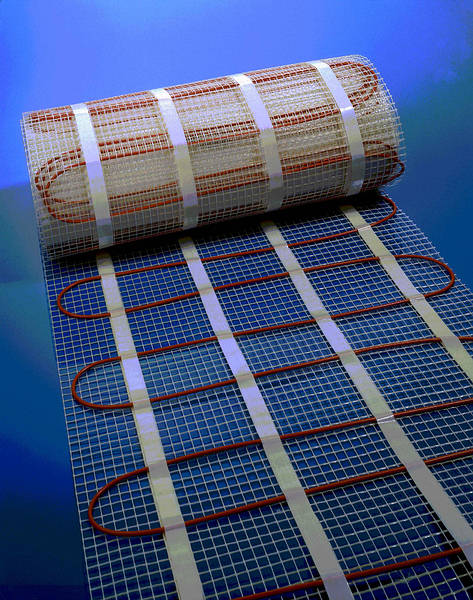

EHM heater mats are used under ceramic or stone floors. They consist of a small diameter heating cable attached to a nylon web, which can be fitted into the tile adhesive. - In poorly insulated properties supplementary heating may be required.
- For peace of mind in rooms with exceptionally high heat loss, such as conservatories, select from our High Density (200 watts per square metre) range.
- Features
4mm cable diameter minimises increase in floor height - Pre-assembly on to nylon web ensures even heat distribution and keeps installation time to a minimum
- The nylon web can be cut to suit the shape of the area
- 3m long cold lead
- Programmable thermostat with both room and floor sensor (must be ordered separately)
| - The U16C thermostat monitors both air and floor temperatures.
- The most common application for the U16C thermostat is when heating a bathroom floor. The U16C thermostat is usually mounted on the wall immediately outside the bathroom with the floor probe running through the wall and under the floor tiles.
- Insulation
To prevent downward heat loss, we recommend that EHM mats are installed onto F-Board insulation. F-Board is low-profile insulated tile backer board.
|
