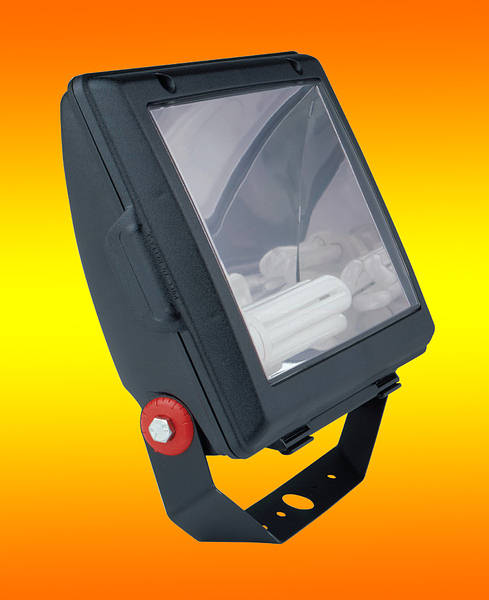

Smartflood - Energy Saving Floodlights
product photo

Supplied with Lamp
Smartflood - Black
Energy Saving Floodlight
ENERGY SAVING COMPARISON
Based On: Total annual hours of darkness 3,000 hours per annum.
Running cost comparison at 7.5p per KW hour x 3,000 hours.

  • 150w Halogen
    Lumen Output 2,400 Lumens
    Average Rated Life 2,000 Hours
  • 26w Smart Flood
    Lumen Output 1,800 Lumens
    Average Rated Life 10,000 Hours
  • COST COMPARISONS
    150w Linear Halogen £ 33.75
    26w TCD/DD £ 5.94
  • ANNUAL SAVING £ 27.85
  • 200w Halogen
    Lumen Output 3,200 Lumens
    Average Rated Life 2,000 Hours
  • 42w Smart Flood
    Lumen Output 3,200 Lumens
    Average Rated Life 10,000 Hours
  • COST COMPARISONS
    200w Linear Halogen £ 42.25
    42w TCD £ 9.60
  • ANNUAL SAVING £ 32.65
Click the order code for Replacement Lamps, Lamps and AccessoriesTechnical: IP Rating Chart and Smart Flood Information 332kb - .pdf
Order Code Description Price (ex vat) Qty
GL SFB2626w Smart Floodlight c/w Lamp - Black
EAEA 3+
35.8034.00
graphic
GL SFB4242w Smart Floodlight c/w Lamp - Black
EAEA 3+
56.4554.20
graphic
GL SFB26PC26w Smart Floodlight c/w Lamp & Photocell - Black
EAEA 3+
44.9043.50
graphic
GL SFB42PC42w Smart Floodlight c/w Lamp & Photocell - Black
EAEA 3+
66.1563.35
graphic
GL SF400B400mm Extension Pole - Black
EA
10.15
graphic
Smartflood - Energy Saving Floodlights
product photo

Supplied with Lamp
Smartflood - White
Energy Saving Floodlights
ENERGY SAVING COMPARISON
Based On: Total annual hours of darkness 3,000 hours per annum.
Running cost comparison at 7.5p per KW hour x 3,000 hours.

  • 150w Halogen
    Lumen Output 2,400 Lumens
    Average Rated Life 2,000 Hours
  • 26w Smart Flood
    Lumen Output 1,800 Lumens
    Average Rated Life 10,000 Hours
  • COST COMPARISONS
    150w Linear Halogen £ 33.75
    26w TCD/DD £ 5.94
  • ANNUAL SAVING £ 27.85
  • 200w Halogen
    Lumen Output 3,200 Lumens
    Average Rated Life 2,000 Hours
  • 42w Smart Flood
    Lumen Output 3,200 Lumens
    Average Rated Life 10,000 Hours
  • COST COMPARISONS
    200w Linear Halogen £ 42.25
    42w TCD £ 9.60
  • ANNUAL SAVING £ 32.65
Click the order code for Replacement Lamps, Lamps and AccessoriesTechnical: IP Rating Chart and Smart Flood Information 332kb - .pdf
Order Code Description Price (ex vat) Qty
GL SFW2626w Smart Floodlight c/w Lamp - White
EAEA 3+
35.8033.95
graphic
GL SFW4242w Smart Floodlight c/w Lamp - White
EAEA 3+
56.4554.20
graphic
GL SFW26PC26w Smart Floodlight c/w Lamp & Photocell - White
EAEA 3+
44.9043.50
graphic
GL SFW42PC42w Smart Floodlight c/w Lamp & Photocell - White
EAEA 3+
66.0563.35
graphic
GL SF400W400mm Extension Pole - White
EA
10.15
graphic
Sign Lights Energy Saving
product photo

Fitting shown with 400mm Sign arm

Energy Efficient Lighting
Complies with Part L1 of the new Building Regulations -
1st April 2002
Powersign Energy Saving Sign Lights
Click the order code for Replacement Lamps, Lamps and AccessoriesTechnical: Lamp Savings Calculator, IP Rating Chart and Lighting Regs Part L1
Order Code Description Price (ex vat) Qty
PW PSL126Powersign Sign Light 1 x 26w Tc-D Lamp
EAEA 3+
28.6525.85
graphic
PW PSL226Powersign Sign Light 2 x 26w Tc-D Lamp
EAEA 3+
39.7036.95
graphic
PW PSL20Besa Mounting Kit for Powersign PSL Fittings
EA
6.90
graphic
PW PSL400400mm Sign arm For PW PSL Fitting
EA
8.90
graphic
Sign Lights Halogen
product photo
Sign Lights
Cast aluminium body with black Satin finish and pressed aluminium reflector
with high quality lamp holders. IP23.
Click the order code for Replacement Lamps, Lamps and AccessoriesTechnical: IP Rating Chart
Order Code Description Price (ex vat) Qty
TL SIGNLITESign Light Black with 200w Halogen - Glass Front ( Clearance Stock )
EAEA 3+
18.7017.60
All Sold
TL THF1300w Open Halogen Floodlight - Black
EAEA 3+
6.755.95
graphic
TL EXT1Spotlight Extension Arm & Bracket - 545mm ( New Just Arrived )
EAEA 3+
3.803.25
All Sold

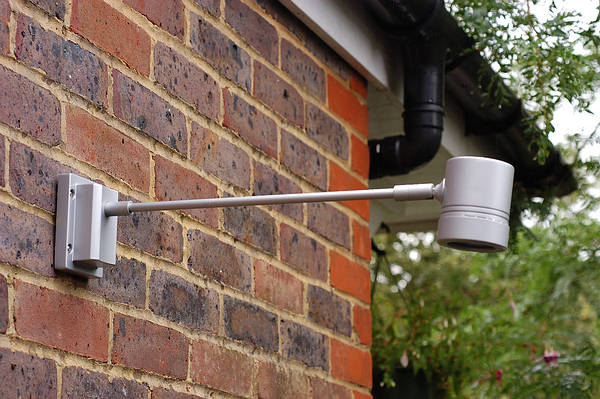

Aero Sign Lights
product photo
Aero Outdoor - IP55
Single Spot Sign Light
  • IP55 rated
  • Modern aluminium finish
  • May be dimmed
  • Supplied with GU10 lamp
  • Finally a real alternative to the swan neck sign light
  • An attractive modern sign light
  • Adjustable head
  • Back Plate: 80mm x 105mm x 45mm
  • Fitting Dia: 70m
  • Projection: 550mm
Click the order code for Lamps and Replacement LampsTechnical: IP Rating Chart
Order Code Description Price (ex vat) Qty
FL 5503Aero Sign Light 50w 240v GU10 IP55
EAEA 3+
60.5058.25
graphic

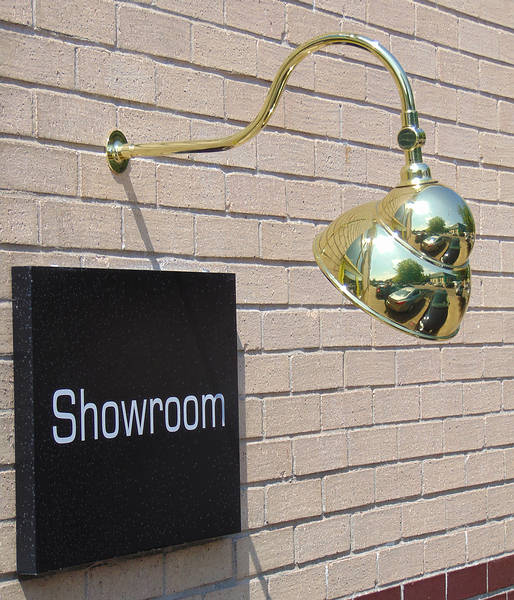

Sign Lights 100Watt GLS
product photo
Sign Lights
Decorative cowl Light


Built to last. A statement of genuine quality. Polished and protected against the weather
by clear lacquer. The answer wherever appearance counts.

These superior units will enhance the external presentation of hotels, restaurants, pubs, shops and commercial premises... anywhere that takes a pride in its appearance.
Click the order code for Lamps
Order Code Description Price (ex vat) Qty
BG PLS181Sign Light Black Finish 100w ES Lamp
EAEA 3+
41.7539.55
graphic
BG PLS180Sign Light Brass Finish 100w ES Lamp
EAEA 3+
45.1543.00
graphic
BG PLS183Sign Light Chrome Finish 100w ES Lamp
EAEA 3+
44.1042.00
graphic
LED Sign Light
product photo

Built-In Driver/Transformer


Proj: 340mm
Width: 260mm
LED Sign Light 2 x 3w
This new sign light uses the latest design and lamp technology.

Finished in Silver it has a modern shape and is IP44 rated for outdoor use.

Lamp source is 2x high-powered 3 watt white LED lamps that have a life span of 50,000 hours.

The main advantage of the LED sign light is that it requires zero maintenance,
no climbing ladders to precariously change lamps twice a year. Just fix it up and leave it.

It also has the added advantage of being extremely low in energy consumption.
Just 6 watts as opposed to the equivalent incandescent of approximately 100 watts.
That is an enormous energy saving from day one.
Technical: IP Rating Chart
Order Code Description Price (ex vat) Qty
FL 6401LED Sign Light 2 x 3w
EA
68.90
graphic
Compact LED Energy Saver Spot/Flood Lights
product photo

Single 8w
Height 165mm
Width 80mm
Depth 50mm

Twin 16w
Height 165mm
Width 165mm
Depth 50mm
Compact
LED Energy Saver Spot/Flood Lights
Black
Introducing the new range of LED outdoor lighting from Timeguard.
They give instant brightness just like halogens but they are under half the size – and using a fraction of the power.
Meet the next generation of Energy Saving Outdoor Lighting.

  • Powerful 8w/16w LED Energy Saving Floodlight – equivalent to 100w/200w incandescent lighting with only 10% of the running costs*.
  • Pan and tilt light aiming adjustment.
  • Instantly bright like halogen lighting but under half the size.
  • Operating temperature -20°C to +40°C.
  • Ideal for both indoor and outdoor installations.
  • IP44 weatherproof rating.
  • Easy installation with Fast-fix terminal block connection.
  • RoHS compliance.
Technical: Instructions 488kb pdf and Instructions 529kb pdf
Order Code Description Price (ex vat) Qty
SM 100FLB8w LED Energy Saver Floodlight - Black
EAEA 3+
38.5037.00
graphic
SM 200FLB16w LED Energy Saver Floodlight - Black
EAEA 3+
49.9947.50
graphic
Compact LED Energy Saver Spot/Flood Lights
product photo

Single 8w
Height 165mm
Width 80mm
Depth 50mm

Twin 16w
Height 165mm
Width 165mm
Depth 50mm
Compact
LED Energy Saver Spot/Flood Lights
Introducing the new range of LED outdoor lighting from Timeguard.
They give instant brightness just like halogens but they are under half the size – and using a fraction of the power.
Meet the next generation of Energy Saving Outdoor Lighting.

  • Powerful 8w/16w LED Energy Saving Floodlight – equivalent to 100w/200w incandescent lighting with only 10% of the running costs*.
  • Pan and tilt light aiming adjustment.
  • Instantly bright like halogen lighting but under half the size.
  • Operating temperature -20°C to +40°C.
  • Ideal for both indoor and outdoor installations.
  • IP44 weatherproof rating.
  • Easy installation with Fast-fix terminal block connection.
  • RoHS compliance.
Technical: Instructions 488kb pdf and Instructions 529kb pdf
Order Code Description Price (ex vat) Qty
SM 100FLWH8w LED Energy Saver Floodlight - White
EAEA 3+
38.5037.00
graphic
SM 200FLWH16w LED Energy Saver Floodlight - White
EAEA 3+
49.9947.50
graphic
