Manrose CF100 Fans

Pull cord version shown

Manrose CF100 Fans

The CF100 range incorporates the latest technology and design in a powerful but very quiet centrifugal fan. This new range is fitted with a backward curved centrifugal impeller for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles. Ideally suited for common or flat duct installations
Maximum pressure: 80 p.a. Fan speed: 1600 r.p.m. Sound volume: 42.0 dB(A). Dimensions: 160w x 160h x 90d (mm)	Can be wall or ceiling mounted - CF100P Wall Only Extract rate 62m³hr, 17 litres per second Fitted with a built-in spring operated non return flap into the discharge spigot to prevent backdraughts Powered by induction motor with pre-oiled bearings for long life 2 year no quibble guarantee

Click the order code for Cable and Accessories

Order Code

Description

Price (ex vat)

Qty

BG CF100P

4 inch Centrifugal Extractor Fan + Pull Cord Switch ( Restrictions Apply )

EA	EA 3+
30.45	28.70

BG CF100S

4 inch Centrifugal Extractor Fan ( Restrictions Apply )

EA	EA 3+
27.65	25.95

BG CF100T

4 inch Centrifugal Extractor Fan + Timer ( Restrictions Apply )

EA	EA 3+
35.55	33.40

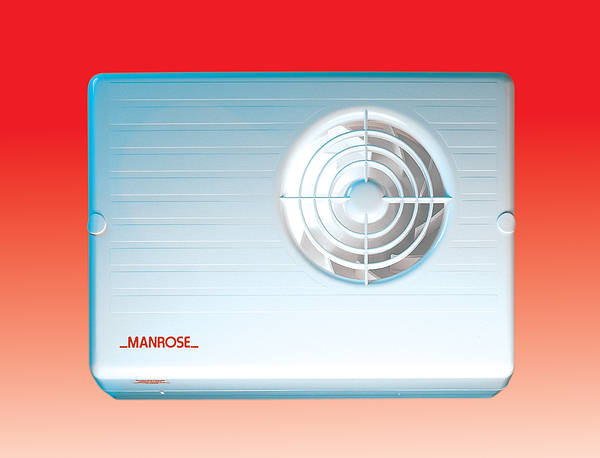

Manrose CF200 Fans

Manrose CF200 Fans

The CF200 range incorporates the latest technology and design in a powerful but very quiet centrifugal fan. This new range is fitted with a backward curved centrifugal impeller for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles. Ideally suited for common or flat duct installations
Maximum pressure: 120 p.a. Fan speed: 1400 r.p.m. Sound volume: 45.0 dB(A).	Extract rate 110m³hr, 31 litres per second Fans can be wall or ceiling mounted - CF200P Wall Only British made Designed to exceed the 1995 Building Regulations on Ventilation (F1) Fitted with a built-in spring operated non return flap into the discharge spigot to prevent backdraughts 2 year no quibble guarantee

Click the order code for Cable and Accessories

Order Code

Description

Price (ex vat)

Qty

BG CF200P

4 inch Centrifugal Extractor Fan + Pull Cord Switch ( Restrictions Apply )

EA	EA 3+
35.55	33.40

BG CF200S

4 inch Centrifugal Extractor Fan ( Restrictions Apply )

EA	EA 3+
32.60	30.65

BG CF200T

4 inch Centrifugal Extractor Fan + Timer

EA	EA 3+
40.30	37.70

Airflow Supervent - Kitchen and Utility Room Fans

Shown with Flush mounting bezel

Surface Mounted
Depth - 143mm
Width - 250mm
Height - 200mm

Flush Mounted
Depth - 37mm
Bezel Width - 286mm
Bezel Height - 236mm

2 Speed
1 - 68 l/sec, 245m3/hr
2 - 19 l/sec, 68m3/hr

Airflow Supervent Centrifugal Kitchen and Utility Room Fans

100mm Supervent Fan small in size but big in performance.

One of the most powerful kitchen fans available delivering 6" fan performance levels through 100mm ducting.

This range of powerful fans provides compact units that are also quiet in operation.

A two speed centrifugal fan that is simple to install and exceptionally versatile for mounting in most situations.

Easy to clean removable metal grease filter
These are the ideal solution for removing damp moist air, odours
and airborne pollutants from kitchens and utility rooms.

Application
A high performance fan, designed for kitchens and utility rooms.

Wall or Ceiling mounted - Optional Window Kit available

Click the order code for Accessories

Technical: Data Sheets / Installation

Order Code

Description

Price (ex vat)

Qty

AD SV6

Airflow Supervent Centrifugal Kitchen Fan

EA
86.50

AD SV6HP

Airflow Supervent Centrifugal Kitchen Fan + Humidistat

EA
97.00

AD SV6T

Airflow Supervent Centrifugal Kitchen Fan + Timer

EA
97.00
