GET Sphere Wireless Lighting System
product photo
GET Sphere Wireless Lighting System
The next evolution of lighting control

How does it work?
Sphere operates by sending a coded wireless signal from a controller to the wired-in circuit receiver units.
These in turn control the light source or other equipment connected to it.
The receivers are discreetly located into the ceiling
when used with fixed lighting or under furniture when used with portable lighting.

Setting the scene
With either five or eight channels available, Sphere provides a wide range of lighting
options to create the perfect setting for your home, whether socialising with friends, or
relaxing after a hard day’s work.

Total control at your fingertips
At the push of a button, the light levels can be controlled to meet the desired ambience.
With a choice of either wall mounted or stylish hand held controllers, the ability to
change the lighting to suit your mood is always within easy reach.

Simplicity at its best
Sphere requires no complicated software or specialist installation,
which means programming couldn’t be simpler

Please note the NEW SPHERE is NOT compatible with the previous Smart system

  • The choice is yours
    Sphere can be used to control both indoor and outdoor lighting. Offering the additional benefit of relay operated devices,
  • Sphere can control a wide array of other outputs, such as fans, compact fluorescent lamps and LED lighting.
  • Sphere is the future of automation.
  • Easy does it
    The controllers can be mounted to any surface and require no wiring, making installation simple and straightforward.
  • The receivers can be mounted inline, which enables table lamps, uplighters and other lighting outputs to be incorporated into the complete lighting solution.
  • They can also be part of the fixed wiring into ceilings or floor voids.
  • Safe and sound
    Taking lighting control to a higher level, Sphere can act as a security measure.
  • By using the wireless controllers, the whole house can be lit up prior to entering, providing peace of mind when returning home at night.
  • A world of possibilities
    There is no limit to the number of receivers that can be installed in each property, so every room could potentially be controlled individually.
  • Receivers can operate up to 30 metres away from the controller, offering flexibility for the homeowner.
  • A single channel dimmable receiver is available, which is ideal for individual channel applications such as a child’s bedroom. This will enable local control of the room’s lighting, as well as the ability to link it to the rest of the system.
GET - Sphere 5 & 8 Channel Wall Remote Control
product photo

Please note
the NEW SPHERE is NOT compatible with the previous Smart system

GET - Sphere
5 & 8 Channel Wall Remote Control
The battery operated controllers can be located in any position around the home.

The wall controllers can be mounted flush in an existing 16mm deep standard mounting box
or surface with the pattress box supplied as standard with every controller.
Click the order code for Replacement BatteriesTechnical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS WWC5Sphere 5 Channel Wall Remote Control
EA
68.50
graphic
GS WWC8Sphere 8 Channel Wall Remote Control
EA
72.50
graphic

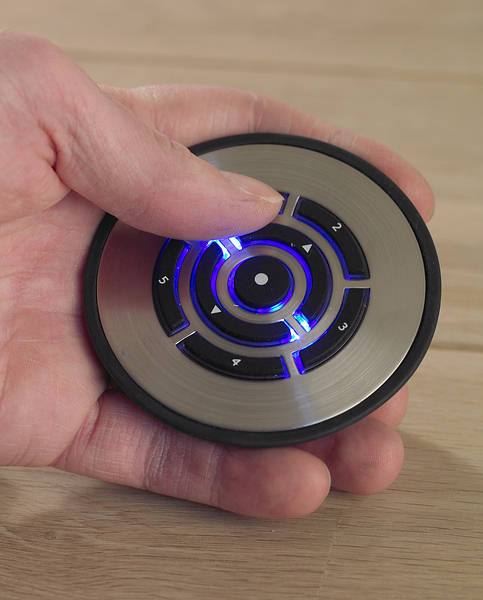

Sphere Hand Remote Control
product photo

Please note
the NEW SPHERE is NOT compatible with the previous Smart system

Sphere
5 & 8 Channel Hand Remote Control
The battery operated controllers can be located in any position around the home.

The handheld controller provides complete
flexibility around the home, from the living room, to the kitchen,
bathroom and even from the car, giving you a welcome light.

Supplied with Stainless steel front plate and wall mounting bracket.
Click the order code for Replacement BatteriesTechnical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS WHC5Sphere 5 Channel Hand Remote Control
EA
88.40
graphic
GS WHC8Sphere 8 Channel Hand Remote Control
EA
90.50
graphic
Sphere 300w Simple Dimmable Wall Control
product photo

Please note
the NEW SPHERE is NOT compatible with the previous Smart system

Sphere
300w Simple Dimmable Wall Control - Kids
This Mains operated wall controller can be mounted flush in an existing 20mm deep standard mounting box.

This hard wired control unit is perfect for retrofitting in a single room, e.g child’s bedroom,
and provides simple scene control and dimming functions of the room’s light.
However when programmed in conjunction with the rest of the Sphere range,
this dimming receiver can be controlled remotely and
incorporated into the overall scene functionality.
Technical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS WWDR30Sphere 300w Simple Dimmable Wall Control - 240v
EA
102.25
graphic
Sphere 350w Ceiling Dimmable Receiver
product photo

Please note
the NEW SPHERE is NOT compatible with the previous Smart system

Sphere
350w Ceiling Dimmable Receiver
At the push of a button, the light levels can be controlled
to meet the desired ambience. With a choice of either wall
mounted or stylish hand held controllers, the ability to change
the lighting to suit your mood is always within easy reach.
Technical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS WCDR35Sphere 350w Ceiling Dimmable Receiver
EA
52.70
graphic
Sphere 5A Relay Switch Receiver
product photo

Please note
the NEW SPHERE is NOT compatible with the previous Smart system

GET - Sphere
5A Relay Switch Receiver

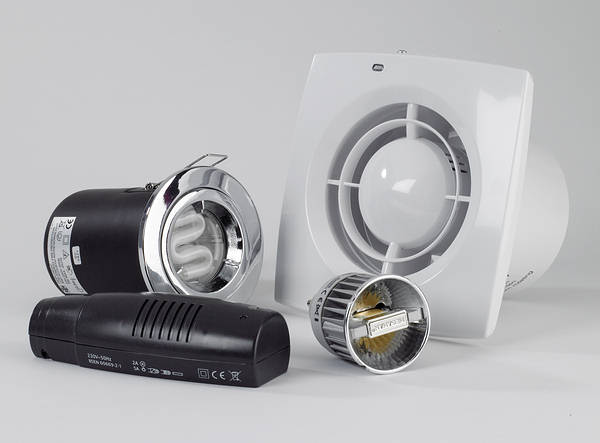

The simple relay receiver can be used for remote switching of
equipment such as air extraction units and pumps. In addition,
it is ideal for use with lamps and lighting, which incorporate
CFL or LED light sources.

With the addition of a relay receiver and some simple
programming, other equipment can also be controlled. A silent
night time mode can easily be introduced for the bathroom, by
allocating a specific channel. When in use, the channel will give
you light without activating the extractor fan.
Technical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS WCRR5ASphere 5A Relay Switch Receiver
EA
52.70
graphic
Sphere Floor Dimmable Receiver
product photo

Please note
the NEW SPHERE is NOT compatible with the previous Smart system

GET - Sphere
350w Floor Dimmable Receiver
Sphere also offers the facility to control portable lighting such as
table lights and uplights, thereby linking both fixed and portable
room lighting for a fully integrated lighting solution.

Operates on receiving a wireless signal from Wall : GSWWC or Remote GSWHC Controllers
Technical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS WFDR35Sphere 350w Floor Dimmable Receiver
EA
52.70
graphic
GET Sphere Ceiling Flourescent Dimmable Receiver
product photo

Please note
the NEW SPHERE is NOT compatible with the previous Smart system

GET Sphere
Ceiling Flourescent Dimmable Receiver - 1 - 10v
This additional receiver can now be used in conjunction
with fluorescent light sources with a dimmable ballast (not supplied).

When fully installed, Sphere will provide an effective
fluorescent dimming solution meaning more light sources can be controlled.

Sphere is NOT compatible with the Smart products it replaces (vice – versa)
Technical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS W10VFLDRSphere Ceiling Fluorescent Dimmable Receiver
EA
57.50
graphic

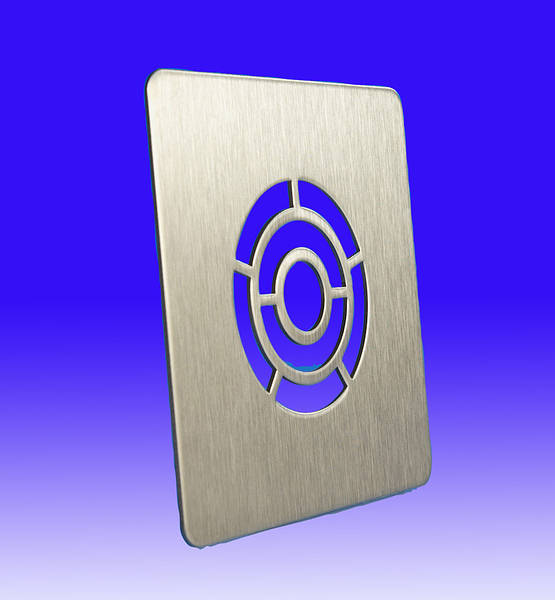

Sphere 1 Gang Replacement Face Plates
product photo
Sphere
1 Gang Wireless Lighting Control
Replacement Face Plates
Alternative Finish Face plate
for use with
Wireless Wall Controller (GSWWC5 & 8)
Technical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS W1GFP5BNSphere 5 Channel Single Wall Plate - Black Nickel
EA
10.20
graphic
GS W1GFP5PBSphere 5 Channel Single Wall Plate - Polished Brass
EA
10.20
graphic
GS W1GFP5PNSphere 5 Channel Single Wall Plate - Pearl Nickel
EA
10.20
graphic
GS W1GFP5PWSphere 5 Channel Single Wall Plate - White
EA
10.20
graphic
GS W1GFP8BNSphere 8 Channel Single Wall Plate - Black Nickel
EA
10.20
graphic
GS W1GFP8PBSphere 8 Channel Single Wall Plate - Polished Brass
EA
10.20
graphic
GS W1GFP8PCSphere 8 Channel Single Wall Plate - Polished Chrome
EA
10.20
graphic
GS W1GFP8PNSphere 8 Channel Single Wall - Pearl Nickel
EA
10.20
graphic
GS W1GFP8PWSphere 8 Channel Single Wall Plate - White
EA
10.20
graphic
GET Sphere 2 Gang Replacement Face Plate
product photo
GET Sphere
2 Gang Replacement Face Plate
Alternative Finish Face plate for use with
Wireless Wall Controller GSWWC5 & 8

These are ideal for retro-fitting into a 2 gang wall box, e.g. where you are replacing a 4 gang dimmer.
These plates come complete with grid mounting frame.
Technical: Product Guide 580kb pdf and Update 80kb pdf
Order Code Description Price (ex vat) Qty
GS W2GFP5BNSphere 5 Channel Twin Wall Plate - Black Nickel
EA
12.80
graphic
GS W2GFP5PBSphere 5 Channel Twin Wall Plate - Polished Brass
EA
12.80
graphic
GS W2GFP5PCSphere 5 Channel Twin Wall Plate - Polished Chrome
EA
12.80
graphic
GS W2GFP5PNSphere 5 Channel Twin Wall Plate - Pearl Nickel
EA
12.80
graphic
GS W2GFP5PWSphere 5 Channel Twin Wall Plate - White
EA
12.80
graphic
GS W2GFP5SSSphere 5 Channel Twin Wall Plate - Stainless Steel
EA
12.80
graphic
GS W2GFP8BNSphere 8 Channel Twin Wall Plate - Black Nickel
EA
12.80
graphic
GS W2GFP8PBSphere 8 Channel Twin Wall Plate - Polished Brass
EA
12.80
graphic
GS W2GFP8PCSphere 8 Channel Twin Wall Plate - Polished Chrome
EA
12.80
graphic
GS W2GFP8PNSphere 8 Channel Twin Wall Plate - Pearl Nickel
EA
12.80
graphic
GS W2GFP8PWSphere 8 Channel Twin Wall Plate - White
EA
12.80
graphic
GS W2GFP8SSSphere 8 Channel Twin Wall Plate - Stainless Steel
EA
12.80
graphic
Smart / Sphere Weatherproof Enclosure - IP56
Smart / Sphere
Weatherproof Enclosure - IP56
Please note that both the Floor Receiver and Ceiling Receivers
do not have an appropriate weatherproof IP rating to be directly located outside.

They should be either wired such that they are located indoors or alternatively if required
to be located outside, housed in a suitable weatherproof enclosure of at least IP56 rating
Click the order code for Accessories and GlandsTechnical: IP Rating Chart
Order Code Description Price (ex vat) Qty
GW BX763190 x 140 x 70mm IP56 Moulded Box
EA
8.50
graphic
