1.40kW Daino - fine Crystalline Limestone Heater

Main Index • Technical • View Your Order / Checkout • Quick Order Entry • Stock Availablity • Delivery

074136

Stone & Marble are natural materials - differences occur from product to product with the same finish

Height: 1230mm
Depth: 70mm
Width: 550mm
Weight Kg : 60

1.40kW Daino - fine Crystalline Limestone Heater

Fine Crystalline Limestone

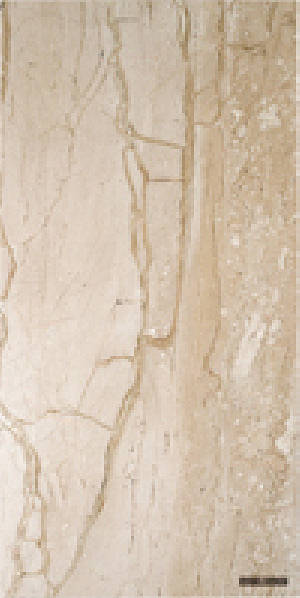

Light brown veined with white, and also partly fossilised section

High grade natural stone plates
with a heat conductor let into the 30mm thick marble or soapstone plate.

The heat conductor is insulated with Teflon and is routed into the channel carved into the back of the heater.
That safeguards an even warming through of the stone and a large surface that actively radiates heat.
Overheating protection through two safety temperature limiters.
4mm thick insulating plate on the back of the device.
The concealed mounting points are invisible from the front.

The natural stone heater is individually controlled
via a wall mounted room temperature controller (see below).

Radiated heat generates an even temperature
Portrait or landscape installation options
Two safety temperature controllers with automatic reset as overheating protection
Heating conductor inside a duct system routed into the back
Back, 4 mm thermal plate

Protection class 11, hose-proof IP 25
Suitable for Zone 2 bathroom use.
Max. surface temperature 90°C
Natural stone is a very inert heat conductor
It is not problem to touch the natural stone even if the surface temperature is 90°C.
Maintenance free and free from wear and tear
Fitted with 1m cable.

Stock held by AEG: - Please allow 7 - 10 Working days for Delivery

Technical: User Instructions 220kb pdf, Data Sheet 75kb pdf and IP Rating Chart

Order Code

Description

Price (ex vat)

Qty

AG MHD140

1.40kW Daino - fine Crystalline Limestone Heater

EA
342.60
