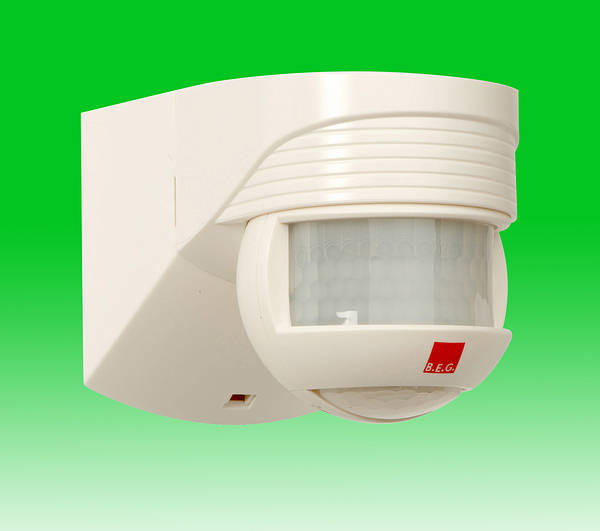

Luxomat - 140° PIR 2kw Load 12m Detection - White
Product Code: BE LC140W
4007529910014
93041
Loading …
Length: 103mm.
Width: 78mm.
Height: 78mm.
Luxomat
140° PIR 2kw Load 12m Detection
White
140° PIR 2kw Load 12m Detection
White
Spherical head adjustable in two levels
Range adjustable by moving the sensor head.
The detection area can be altered by blinds, which are included.
The blinds can be clipped-on and moved to stop unwanted detection.
Adjustment light level and time setting by screwdriver and potentiometers
at the bottom of the sensor head infinitely variable
Easy installation with plug-in socket
Application examples:
monitoring for narrow premises, ways, gateways or at door sills
with Creep Zone
- Wall mounting
- Degree of protection: IP44 / Class II / CE
- Housing of high-grade UV-resistant Polycarbonate
- Ambient temperature: -25°C to +50°C.
- Photo electric switch: 2 - 1000 Lux.
- Time setting: approx. 4 sec. - 10 min.
- Power supply: 230 V~ ±10%
- Switching capacity: 2000w incandescent etc
1000w on fluorescent, CFL's - Detection area: 140° + 360°
- Range: max. 12 m when walking across (tangential).
Length: 103mm.
Width: 78mm.
Height: 78mm.
Technical:Instructions - 448kb .pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BE LC140W
Luxomat - 140° PIR 2kw Load 12m Detection - White |
