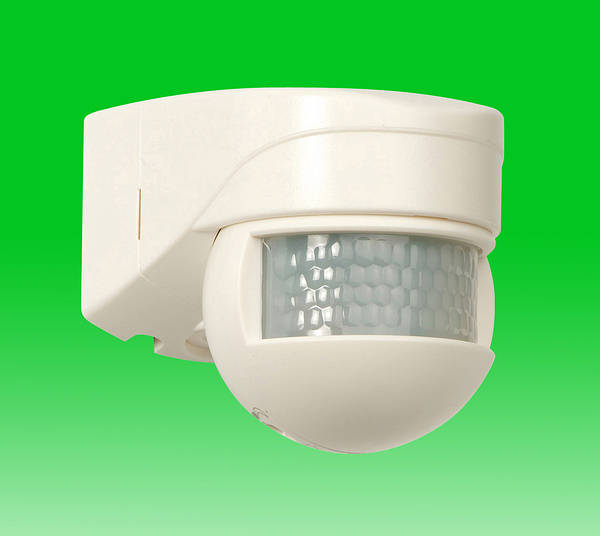

Luxomat - 180° PIR 1kw Load 10m Detection - White
Product Code: BE LCM180W
4007529910724
91052
Loading …
Length: 80mm.
Width: 55mm.
Height: 70mm.
Luxomat
180° PIR 1kw Load 10m Detection
White
180° PIR 1kw Load 10m Detection
White
Spherical head adjustable in two levels
Range adjustable by moving the sensor head.
The detection area can be altered by blinds, which are included.
The blinds can be clipped-on and moved to stop unwanted detection.
Adjustment light level and time setting by screwdriver and
potentiometers at the bottom of the sensor head infinitely variable.
Application examples:
monitoring for narrow premises, ways, gateways or at door sills
- Wall mounting
- Degree of protection: IP44 / Class II/ CE
- Housing UV- and shock-resistant Polycarbonate
- Ambient temperature: -25°C to +50°C.
- Time settings: 4 sec. - 10 min.
- Photo electric switch: 2 - 2500 Lux.
- Power supply: 230 V~ +6% /-10%
- Detection area: 180°
- Switching capacity: 1000w incandescent etc
500w on fluorescent, CFL's - Range: max. 10 m when walking across (tangential).
Length: 80mm.
Width: 55mm.
Height: 70mm.
Technical:Instructions - 500kb .pdf |
|
