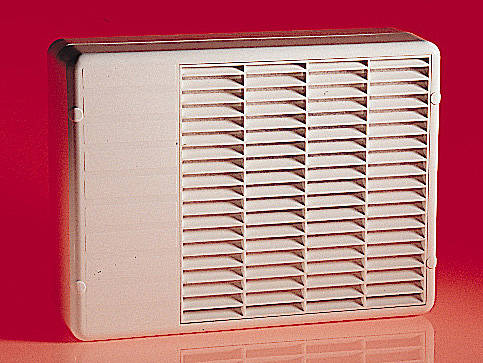

4 Inch Centrifugal Humidity Power Extractor Fan

Manrose CF400H

Air Movement
230m3/hr

Mounting
Wall or Ceiling

Power Consumption
Max 45 watts

Manrose Centrifugal Kitchen Humidity Power Extractor Fan

The CF400 fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and appearance.
Washable grease filter.
Ideal for use in large kitchens or where fast air changes are required

Humidity control fitted with our new 2 speed option as standard.
The fan will run at full speed on integral or remote switching.
but will run at about half speed when humidity rises over the pre-set level
which is adjustable between 40% RH & 95% RH.
Requires switched live.

Complete with integral adjustable timer (adjustable 1-20 mins).

Designed to be mounted on walls or ceilings and discharged through 100mm (4") diameter flexible or rigid pipes.
Maximum pressure: 300 p.a.
Fan speed: 2350 r.p.m.
Sound volume: 58.0 dB(A).
Dimensions: 350w x 265h x 180d (mm)

Outlet with backdraft shutter for use with 4 inch ducting.
Enough power to duct up to 8 metres.
Quiet 58 db operation.
Maximum operating temperature: 89°C

Technical: Fan Size Calculator and Information

Order Code

Description

Price (ex vat)

Qty

BG CF400H

4 Inch Centrifugal Humidity Power Extractor Fan

EA
93.05

Discontinued
