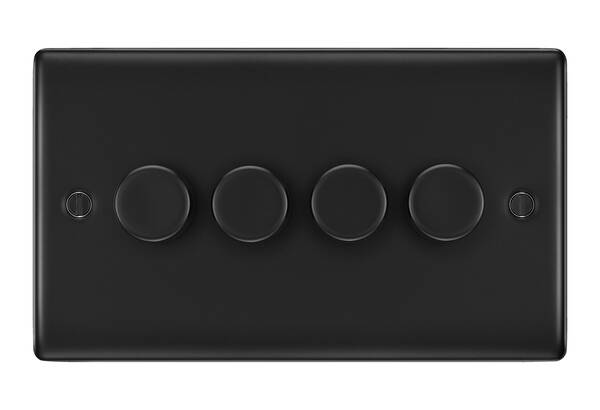

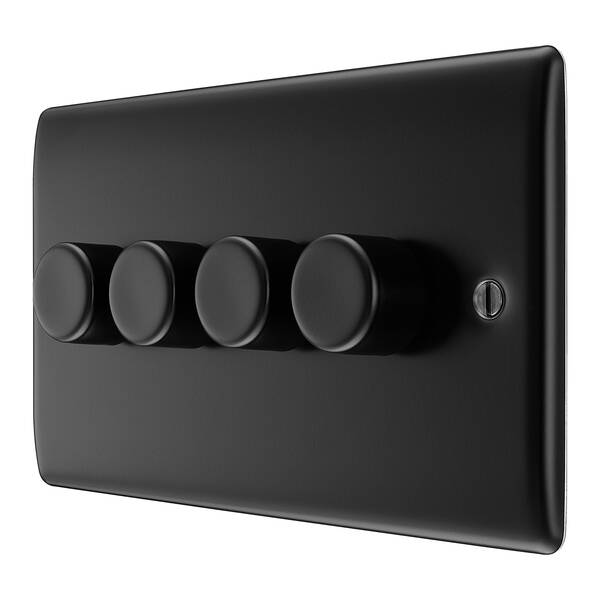

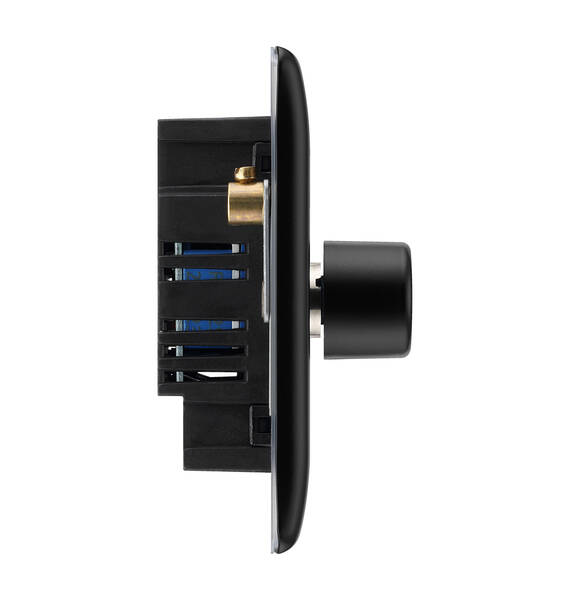

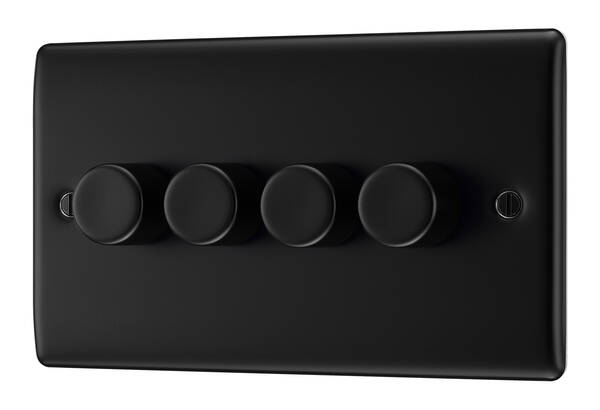

4 Gang 2 Way Push Dimmer 150w - Nexus - Matt Black
Product Code: BG NFB84
5050765241687
NFB84-01
Loading …
25mm.
BG Nexus
4 Gang 2 Way Push Dimmer 150W
Matt Black
4 Gang 2 Way Push Dimmer 150W
Matt Black
Modern Slim profile - Lightly lacquered surface to reduce fingerprint marks.
Intelligent Dimmer
Overload ProtectionThis dimmer is fitted with an overload current protection
device, in the event of an overload condition the dimmer will stop working until the
overload is corrected. Please check the total load ratings before installing.
Soft Start To prolong the life of the connected lighting this dimmer features a
soft start function. Upon switching on, lighting will increase from 0 to 100% in 1.2
seconds.
Intelligent Dimmer
Overload ProtectionThis dimmer is fitted with an overload current protection
device, in the event of an overload condition the dimmer will stop working until the
overload is corrected. Please check the total load ratings before installing.
Soft Start To prolong the life of the connected lighting this dimmer features a
soft start function. Upon switching on, lighting will increase from 0 to 100% in 1.2
seconds.
- Trailing (lagging) edge dimmers suitable for LED, mains and low voltage halogen, as well as traditional lighting
- Intelligent electronic circuit monitors the connected load and provides a soft-start for improved lamp life, with protection against thermal,current and voltage overload
- Smooth dimming control and silent operation - no noise when dimming
- Suitable for lower wattage lamps, eliminates flicker
- Rotary dimmer control with push on/off function
- Load Ratings: (Min/Max per module)
- Tungsten lamp: 20-200W
- Halogen lamp (Mains Voltage): 20-200W
- Halogen lamp (Low Voltage, 12V): 20-200W
- Dimmable LED: 5-100W
- Dimmable Compact Fluorescent (CFL): 5-100W
25mm.
Technical:Nexus Metal Brochure - 7.6mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BG NFB84
4 Gang 2 Way Push Dimmer 150w - Nexus - Matt Black |
