Contactum - Switchgear DFS200

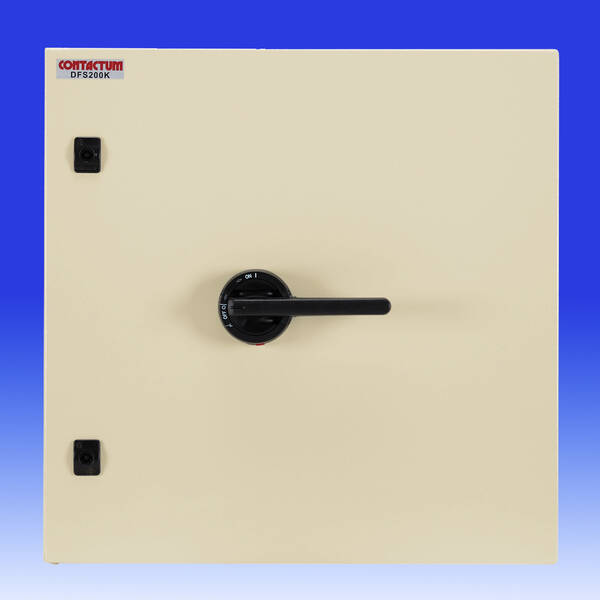

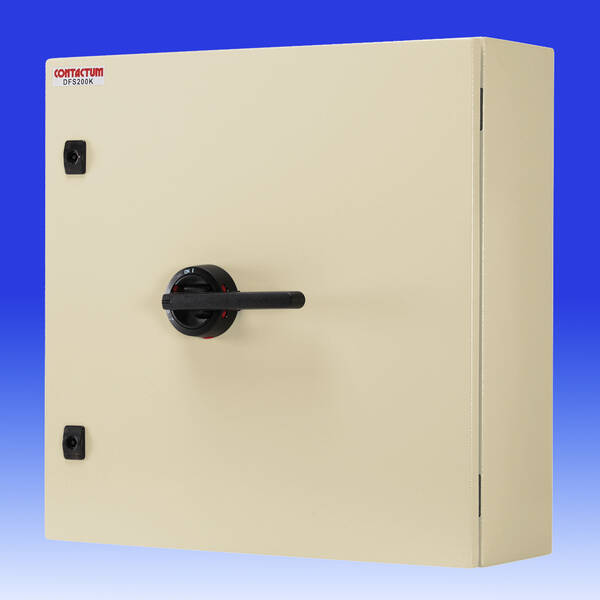

200 Amp TP&N Switchfuse - Contactum

Dimensions: (mm)
W: 270 x H: 395 x D: 175

Weight:
10Kg

200A TP&N Switchfuse

'S' Type Three Pole Switchfuses (hinged doors)

Rotary Handle
IP43 mild steel enclosure
.

  • Fully rated solid neutral
  • Gland plates top and bottom

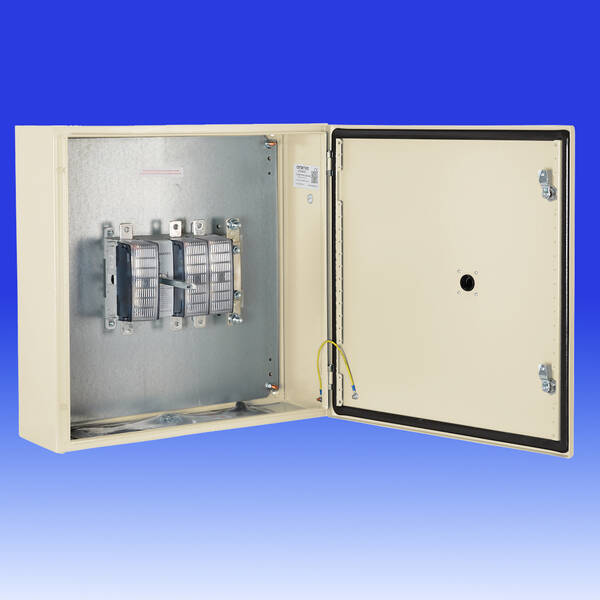

  • Removable back plate and door
  • Fully rated AC23 on load switch disconnectors
  • Total isolation for fuse link removal
  • Interlocked padlockable handle
  • RAL7044 light grey finish
  • Smaller rated fuses can be fitted in fuse units. Subject to body size
  • Aux. switches and switched neutrals available (please contact Contactum)
  • BS88 fuses included in switchfuses
Order Code Description Price (ex vat) Qty
CM DFS200200 Amp TP&N Switchfuse - Contactum (Extended Range*)
EAEA 3+
255.50237.20
