8 Way Insulated Dual Split Consumer Unit 80A RCDs

  part of  CP Dual RCD Consumer Units
Main Index   •   Technical   •   Quick Order Entry   •   My Account   •   Stock Availability   •   Delivery
View Your Basket Basket

Customer Services: 01293 565 630
8 Way Insulated Dual Split Consumer Unit 80A RCDs 5055556222456  CPDS088P

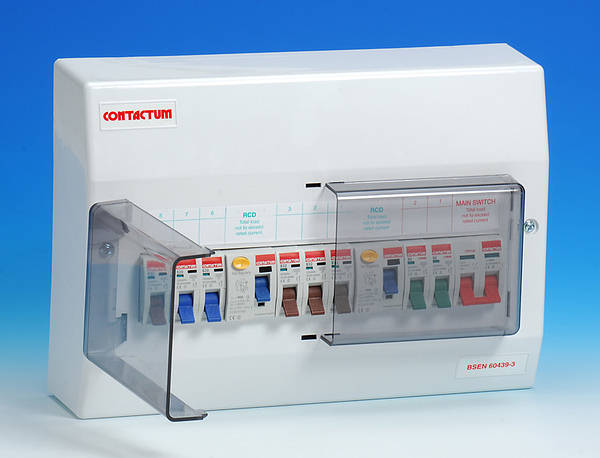

8 Way Insulated Dual Split Consumer Unit 80A RCDs

Supplied less MCB's

Standards:
Consumer unit - BS EN 60439-3
Isolator - BS EN 60947-3 AC22
RCD - BS EN 61008 Type A

Terminal capacities:
100A Main switch - 35/50mm²
80A RCD - 35mm²
Neutral / Earth bars 16mm²

Dimensions (mm)
H-232 W-330 D-90 + 26 (door)
New Contactum "CP" Range
8 Way Insulated Dual Split Consumer Unit
Constructed from fire resistant 'VO' rated material

Maximum Combinations - 8 ways
100A Isolator (2 ways), 80A 30mA RCD (4 ways) & 80A 30mA RCD (4 ways)

Uses a flexible configuration to provide optimal combinations of RCD’s, MCB’s and RCBO’s
Direct fed section for individual MCB’s or RCBO’s
Two RCD sections allow division of circuits to minimise nuisance tripping
Other configurations can be supplied to order

Supplied less MCB's




  • Designed and manufactured in London
  • Tested to BS EN 60439-3 in a UKAS accredited laboratory
  • Generous cabling space
  • Secure 3 point fixing
  • Coloured MCB dolly's for easy identification
  • All devices lockable off
  • Full range of command and control devices
  • Up to 25 year guarantee
  • Full customer design service available
Technical: CP Range Catalogue - 450kb pdf
Order Code Description Price (ex vat) Price (inc vat) Qty
CP DS088P8 Way Insulated Dual Split Consumer Unit 80A RCDs
EA
45.60
EA
54.72
graphic
Related items you may need.
Contactum MCB's - Type:- B
product photo
New Contactum "CP" Range
Type: B - MCB's
Contactum circuit protection devices are all built tested to international, national
and Contactum’s own exacting specifications and quality control procedures

Colour coded dollys allow quick visual identification of ratings
Window on the device indicates on (red) and off (green)

Standards:- IEC 60898 BS EN 60898
Technical: CP Range Catalogue - 450kb pdf
Order Code Description Price (ex vat) Price (inc vat) Qty
CP B066 Amp MCB - Contactum
EA
1.99
EA
2.39
graphic
CP B1010 Amp MCB - Contactum
EA
1.99
EA
2.39
graphic
CP B1616 Amp MCB - Contactum
EA
1.99
EA
2.39
graphic
CP B2020 Amp MCB - Contactum
EA
1.99
EA
2.39
graphic
CP B3232 Amp MCB - Contactum
EA
1.99
EA
2.39
graphic
CP B4040 Amp MCB - Contactum
EA
1.99
EA
2.39
graphic
CP B5050 Amp MCB - Contactum
EA
1.99
EA
2.39
graphic
CP B6363 Amp MCB - Contactum
EA
1.99
EA
2.39
graphic
CP A026 Contactum Blanks - (can be cut)
EA
0.32
EA
0.38
graphic
CP A10MCB Toggle Locking Device (9001)
EA
2.60
EA
3.12
graphic
BK GCDCircuit Detail Labels - pack of 25 - NICEIC
EA
7.25
EA
8.70
graphic
Contactum MCB's - Type:- C
product photo

B Type shown
New Contactum "CP" Range
Type: C - MCB's
Contactum circuit protection devices are all built tested to international, national
and Contactum’s own exacting specifications and quality control procedures

Colour coded dollys allow quick visual identification of ratings
Window on the device indicates on (red) and off (green)

Standards:- IEC 60898 BS EN 60898
Order Code Description Price (ex vat) Price (inc vat) Qty
CP C066 Amp Contactum MCB - C Type
EA
3.65
EA
4.38
graphic
CP C1010 Amp Contactum MCB - C Type ( Extended Range* )
EA
3.65
EA
4.38
graphic
CP C1616 Amp Contactum MCB - C Type
EA
3.65
EA
4.38
graphic
CP C2020 Amp Contactum MCB - C Type
EA
3.65
EA
4.38
graphic
CP C3232 Amp Contactum MCB - C Type
EA
3.65
EA
4.38
graphic
CP C4040 Amp Contactum MCB - C Type ( Extended Range* )
EA
3.65
EA
4.38
graphic
CP C5050 Amp Contactum MCB - C Type ( Extended Range* )
EA
3.65
EA
4.38
graphic
CP C6363 Amp Contactum MCB - C Type ( Extended Range* )
EA
3.65
EA
4.38
graphic
Contactum RCBO's
product photo
New Contactum "CP" Range
RCBO's
Contactum circuit protection devices are all built tested to international, national
and Contactum’s own exacting specifications and quality control procedures

Standards:- IEC 61009 BS EN61009
Technical: CP Range Catalogue - 450kb pdf
Order Code Description Price (ex vat) Price (inc vat) Qty
CP BR0616 Amp 30mA RCBO - Contactum
EA
18.99
EA
22.79
graphic
CP BR10110 Amp 30mA RCBO - Contactum
EA
18.99
EA
22.79
graphic
CP BR16116 Amp 30mA RCBO - Contactum
EA
18.99
EA
22.79
graphic
CP BR20120 Amp 30mA RCBO - Contactum
EA
18.99
EA
22.79
graphic
CP BR32132 Amp 30mA RCBO - Contactum
EA
18.99
EA
22.79
graphic
CP BR40140 Amp 30mA RCBO - Contactum
EA
18.99
EA
22.79
graphic
Image Order Code Description Price (ex vat) Price (inc vat) Qty
product photoCP A11Spare 9 Way Bus Bar for 100 Amp Isolator or 63 Amp RCD
EA
1.62
EA
1.94
graphic
product photoCP A13Spare 9 Way Bus Bar for 80 Amp & 100 Amp RCD's
EA
1.50
EA
1.80
graphic
product photoWY REC2SWylex 100A DP Supply Isolator
EAEA 3+
18.3017.20
EAEA 3+
21.9620.64
graphic
