14 Way Flush Metal Split Load Consumer Unit

  part of  CP Split Load Consumer Units
Main Index   •   Technical   •   View Your Order / Checkout   •   Quick Order Entry   •   Stock Availablity   •   Delivery

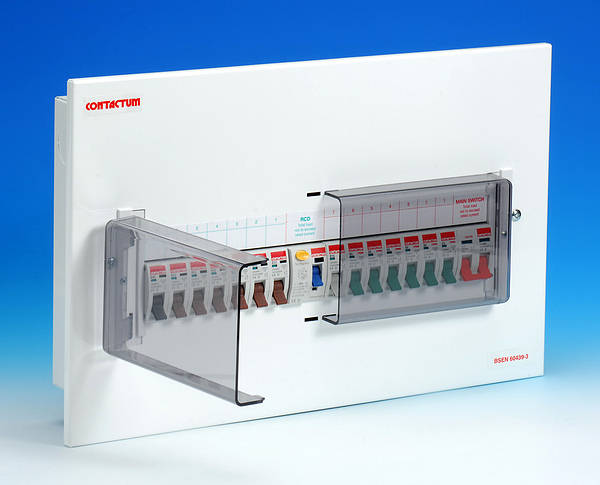

14 Way Flush Metal Split Load Consumer Unit CPS148MF
14 Way Flush Metal Split Load Consumer Unit

Supplied less MCB's

Standards:
Consumer unit - BS EN 60439-3
Isolator - BS EN 60947-3 AC22
RCD - BS EN 61008 Type A

Terminal capacities:
100A Main switch - 35/50mm²
80A RCD - 35mm²
Neutral / Earth bars 16mm²

Dimensions (mm)
H-232 W-405 D-90 + 26 (door)
New Contactum "CP" Range
14 Way Flush Metal Split Load Consumer Unit
Maximum Combinations - 14 ways
100A Isolator (9 ways), 80A 30mA RCD (8 ways)

Industry standard design
Uses a flexible configuration to provide optimal combinations of RCD, MCB’s and RCBO’s
Direct fed section for individual MCB’s and or RCBO’s
Other configurations can be supplied on request

Flush mounting covers / lids overlap dimensions by 23mm on all sides

Supplied less MCB's


  • Designed and manufactured in London
  • Tested to BS EN 60439-3 in a UKAS accredited laboratory
  • Generous cabling space
  • Secure 3 point fixing
  • Coloured MCB dolly's for easy identification
  • This Unit Comprises of:
    1 x CPS148M
    1 x CP18MFC
  • All devices lockable off
  • Full range of command and control devices
  • Up to 25 year guarantee
  • Full customer design service available
  • Knockouts -
    Top & bottom: 2 x 32mm, 2 x 25mm, 5 x 20mm,
    Sides: 1 x 32mm
    Back:, 8 x Rectangle 20mm x 50mm
Technical: CP Range Catalogue - 450kb pdf
Order Code Description Price (ex vat) Qty
CP S148MF14 Way Flush Metal Split Load Consumer Unit
EA
48.50
graphic
Related items you may need.
Contactum MCB's - Type:- B
product photo
New Contactum "CP" Range
Type: B - MCB's
Contactum circuit protection devices are all built tested to international, national
and Contactum’s own exacting specifications and quality control procedures

Colour coded dollys allow quick visual identification of ratings
Window on the device indicates on (green) and off (red)

Standards:- IEC 60898 BS EN 60898
Technical: CP Range Catalogue - 450kb pdf
Order Code Description Price (ex vat) Qty
CP B06 6 Amp MCB - Contactum
EA
1.99
graphic
CP B1010 Amp MCB - Contactum
EA
1.99
graphic
CP B1616 Amp MCB - Contactum
EA
1.99
graphic
CP B2020 Amp MCB - Contactum
EA
1.99
graphic
CP B3232 Amp MCB - Contactum
EA
1.99
graphic
CP B4040 Amp MCB - Contactum
EA
1.99
graphic
CP B5050 Amp MCB - Contactum
EA
1.99
graphic
CP B6363 Amp MCB - Contactum
EA
1.99
graphic
CP A012 Consumer Unit Blanks - (can be cut)
EA
0.15
graphic
CP A026 Consumer Unit Blanks - (can be cut)
EA
0.25
graphic
CP A10MCB Toggle Locking Device (9001)
EA
1.43
graphic
Contactum RCBO's
product photo
New Contactum "CP" Range
RCBO's
Contactum circuit protection devices are all built tested to international, national
and Contactum’s own exacting specifications and quality control procedures

Standards:- IEC 61009 BS EN61009
Technical: CP Range Catalogue - 450kb pdf
Order Code Description Price (ex vat) Qty
CP BR061 6 Amp 30mA RCBO - Contactum
EA
18.99
graphic
CP BR10110 Amp 30mA RCBO - Contactum
EA
18.99
graphic
CP BR16116 Amp 30mA RCBO - Contactum
EA
18.99
graphic
CP BR20120 Amp 30mA RCBO - Contactum
EA
18.99
graphic
CP BR32132 Amp 30mA RCBO - Contactum
EA
18.99
graphic
CP BR40140 Amp 30mA RCBO - Contactum
EA
18.99
graphic
Image Order Code Description Price (ex vat) Qty
product photoCP A03Door Locking Device
EA
6.20
Out of Stock
product photoCP A11Spare 9 Way Bus Bar for 100 Amp Isolator or 63 Amp RCD
EA
1.50
graphic
product photoCP A13Spare 9 Way Bus Bar for 80 Amp & 100 Amp RCD's
EA
1.50
graphic
