5010559402182 Draper 40218

Specification:
Max head height - 12M
Max operating depth - 8M
Max output - 40L/min
Maxi particle size - 3mm dia.
Overall height
(inc. ext. pipes) - 1.6M

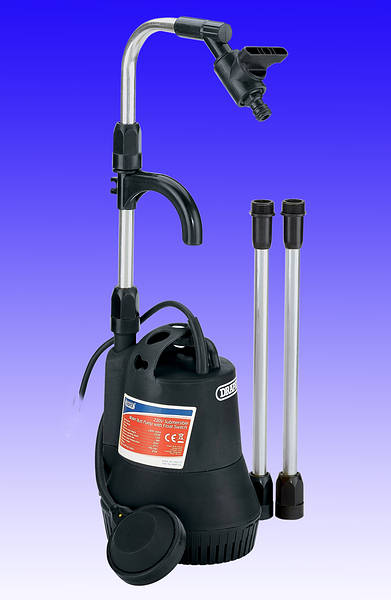

Draper - Water Butt Submersible Pump

Ideal for pumping from a water butt directly to water plants in the garden.
Can also be used to drain ponds and small swimming pools.
Supplied with three piece aluminium swan neck extension pipe, adjustable flow control feature and snap on connector.
Float switch automatically turns pump off when water level has dropped.
Maximum height 0.98M.
Supplied complete with BS approved non-rewireable moulded plug and 10M (approx.) of cable.

Use with RCD controlled mains 230v supply

Supplied with 2 piece aluminium swan neck extension pipe
1/2“ snap on connector.
Height:
Minimum: 660mm
Maximum: 980mm
The swan neck extension can be removed to and connect a hose directly to the pump.
No adaptor needed - hose can connect directly with hose clip.

1/2 inch Snap on hose connector
Adjustable flow control tap feature
Thermal overload protection
Supplied complete with BS approved non-rewireable moulded plug and 10M (approx.) of cable.
Pump diameter - approx 6 inches
Supplied c/w an 8 inch extension piece.

Technical: Instructions

Order Code

Description

Price (ex vat)

Qty

DR WBP1A

Water Butt Submersible Pump
