Yellow Duralite Rope Light

  part of  Duralite Rope Lights - Cut to Length
Main Index   •   Technical   •   View Your Order / Checkout   •   Quick Order Entry   •   Stock Availablity   •   Delivery

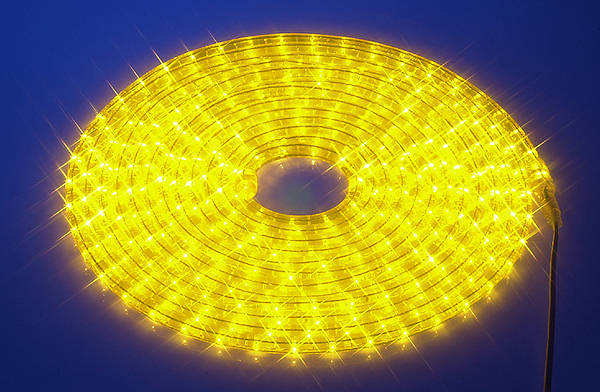

Yellow Duralite Rope Light 611Y / 155.030
Yellow Duralite Rope Light

Must be UNCOILED when LIT

Dimmable
Note - Most dimmers have a minimum load to function
normally 3mts in length
Yellow Duralite Rope Light
The rope can be cut to any required length at the cutting points which are marked on the side of the rope light at 1 metre intervals and joined with different colours as required.
The rope light is then attached to a power connector lead at one end and a end cap or coupler is fitted at the other end.
The connectors are fixed to the rope with strong special waterproof glue.

  • Rope thickness - 13mm
  • Power - 230 Volt
  • Consumption per lamp - 0.445 W
  • Power requirement approx. - 16 W per metre
  • 480 lux per meter
  • Number of bulbs approx. - 36 per metre
  • Maximum length per circuit - 45m
  • Working temperature range - -60°C to 20°C
  • Power 230Vac
  • Mains Connector DT613/CK Required
Technical: Info & Installation Details
Order Code Description Price (ex vat) Metres
DT 611YYellow Duralite Rope Light
per Mper 45M
1.9563.00
graphic
Related items you may need.
Image Order Code Description Price (ex vat) Qty
product photoDT 613/CKMains Connection Kit with End Cap for Rope Lights
EA
2.95
graphic
product photoDT 613/JKDuralight Coupler Set for Rope Lights
EA
1.53
graphic
product photoDT 613/LKL Corner Connector for Rope Lights
EAEA 3+
2.702.44
graphic
product photoDT 613/TKDuralite T Junction kit for Rope Lights
EA
1.31
graphic
product photoDT 613/XKDuralite 4 Way Jointing Kit for Rope Lights
EA
2.43
graphic
product photoSK 155075Duralight Mounting clip
per 1
0.11
graphic
product photoSK 155085Duralight Plastic Strip 2m
EA
3.99
graphic
