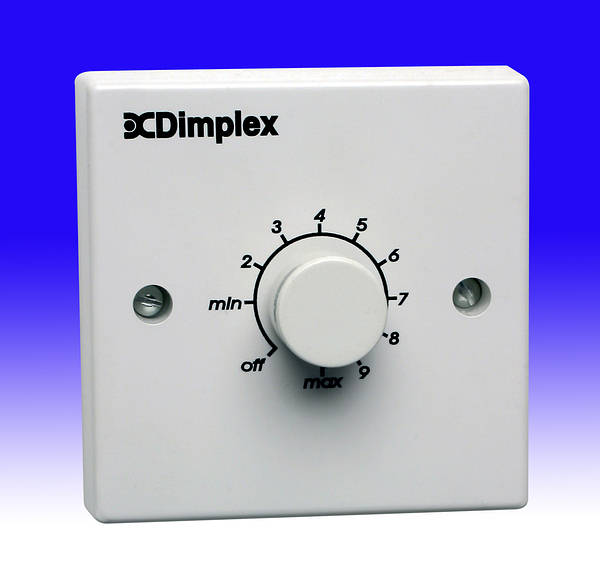

Dimplex 4124 Towel Rail Energy Regulator - Max 850w Dimplex 4124
Dimplex 4124 Towel Rail Energy Regulator - Max 850w
Dimplex
Towel Rail Energy Regulator - Max 850w
Designed to enable the towel rail surface temperatures to be regulated
for applications where a lower surface temperature is ideal for
reducing the towel rail output in summer, when the requirement is to dry towels without
significantly increasing the temperature of the room. It can also ensure a low temperature
is selected where very young children or the old and infirm are likely to come into regular
contact with the towel rail.
The energy regulator also has the ability to significantly decrease running costs, if the
intention is to use the towel rail continuously.

  • Maximum Load: 850W
  • Minimum Load: 40W
  • Switching Rotary knob, 330º rotation with ON/OFF rotary actuator
  • Output Range 0-100% with indices marked 0-9 and max.,
  • Standards Compliance Complies with BS800, BS5518 (where applicable)
  • Colour White
  • Suitable for
    BR400, BR500, BR150W, DTR350W, DTR350C, DLR350, DLR350C
  • Installation
    Back box depth of 17mm required behind fascia plate.
  • Dimensions
    86mm (H) x 86mm (W) x 45mm (D)
Technical: Data Sheets
Order Code Description Price (ex vat) Qty
DX 4124Dimplex 4124 Towel Rail Energy Regulator - Max 850w
EA
25.00
