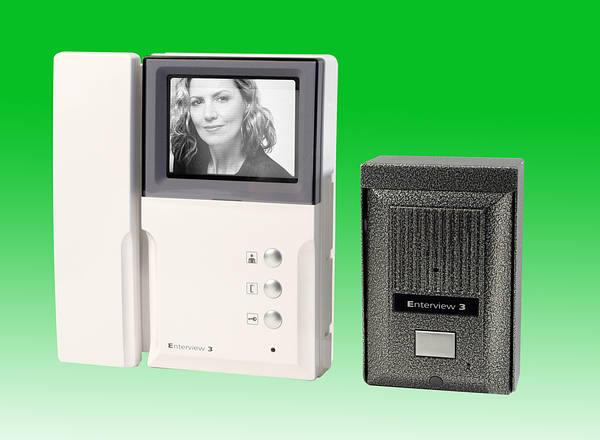

- Enterview 3 Handset / Monitor
- Crisp clear image in mono
- Modern aesthetic design
- Clear high quality audio
- Intercom facility between handsets
- View only function
- Up to four monitor handsets per system
- Integral lock release activation - (lock release is optional extra)
- Provides power for camera
- NB. EV3BPS is required to power an electric lock release.
- Enterview 3 Handset / Monitor
Screen 4" Flat CRT Black and White
Power 90 -264vac (50/60 Hz)
Consumption 15w
Wiring 4 Core – TIV 0.8mm
Operating Temp. 0 - 40ºC
Weight 1.2kgs
Installation Wall Mount ( Surface)
Max Per System Four
| - Door Access / Camera
- Camera mono
- Tough powder coated metal design
- Pinhole vandal resistant
- Weather resistant
- Superior quality CCD camera
- Clear high quality audio
- Surface of flush mountable (surface & flush mounting box included)
- Powered directly from monitor handset
- Door Access / Camera
Power 12VDC Direct From Monitor
Video Output 1VP-P Composite PAL Mono
Min Illumination 1 Lux
Camera Angle 80 Deg / 90 Deg F-4mm
Installation Flush Or Surface
Operating Temp Minus 10 - Plus 50ºC
Consumption 2.0w
|
