Enterview 5 Colour Video Door Entry System + Keypad 5060224100202  EV5CKP

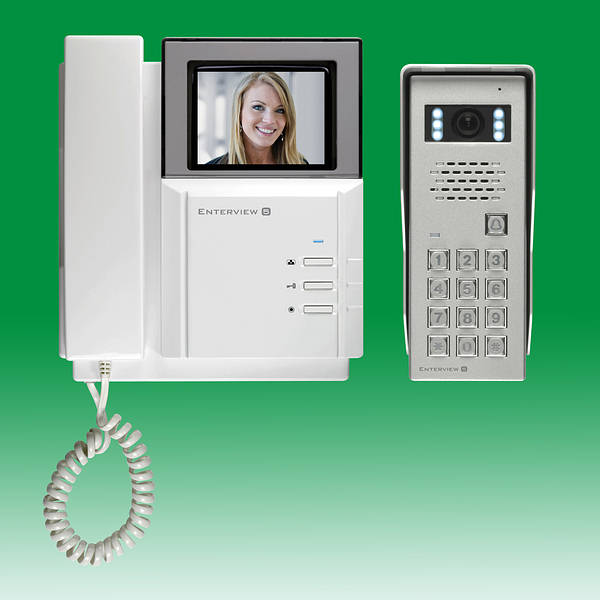

Enterview 5 Colour Video Door Entry System + Keypad

Handset / Monitor
205(W) x 220(H) x 55(D)mm

Door Access / Camera
74(W) x 182(H) x 59(D)mm

Note. 1 x EV3BPS power supply is required which will also power the lock release

Simple 4 core cable installation

Up to 70m distance between camera and first handset with Cat5e cable

Up to 3 additional monitors per system
Up to 2 additional audio handsets per system
Up to 2 camera call points per system
Door release activation button
Two camera input
Simple 4 core cable installation
Supplied with remote 12V power supply
Enterview 5
Colour Video Door Entry System + Keypad
Enterview 5 is the latest generation of this popular range of video door entry systems.
The EV5KP cleverly combines video door entry with access control in a single compact unit .
Built in to the vandal resistant camera unit is an illuminated pin code entry pad .
The buildings occupiers simply key in their code for entry , visitors request entry by pressing the clearly marked door bell button.

EV5CKP provides superb full colour images in all light conditions along with high quality full duplex speech
between handset and the external camera call point
Images at night are enhanced by automatic activation of 4 high intensity LEDs .
The handset unit provides a facility to activate a lock release , transfer calls to other handsets
and select the video feed from the camera call point on demand .

New to EV5 is the ability to connect two external camera call points .
Very useful on buildings with front and rear entrances .
In addition to an extra camera call point the system can also accept up to three further video handsets
and two audio only handsets at convenient points around the property .

Cabling of Enterview 5 systems is simple .
The included power supply feeds suitable voltage to both the monitor and camera .
1 x EV3BPS power supply is required which will also power the lock release.
There is no need for specialist video cable , Cat5 is recommended .
Simply bring cable from the camera / s to a central location and then take a separate cable to each monitor on the system .
Power supplies for the monitors can be located close to each monitor or centrally but should be no more than 40m from the monitor position .

  • Handset / Monitor
  • Stylish low profile design
  • 4" colour monitor
  • High quality audio
  • Volume control
  • Inputs for two camera call points
  • Call transfer facility
  • A visitors call can be transferred to all other handsets on the system
  • Lock release activation
  • Lock release can be remotely activated from the handset
  • View on demand facility
  • User can select to view the video feed from camera /s
  • Brightness and contrast controls
  • Up to 70m cable from monitor to camera ( cat5)
  • Door Access / Camera
  • Vandal resistant metal housing
  • Integral high white leds
  • Visitors are clearly illuminated even in low light conditions
  • Weatherproof IP65 rated
  • Small surface mount design
  • Can be fitted to door frame
  • 3.6mm wide angle 70 degree lens
  • High quality CCD image chip
  • Powered directly from monitor
Technical: Installation & Operating Instructions
Order Code Description Price (ex vat) Qty
EV 5CKPEnterview 5 Colour Video Door Entry System + Keypad
EA
208.00
graphic
Related items you may need.
Image Order Code Description Price (ex vat) Qty
product photoCA CAT5ECAT5E UTP Network Cable
per Mper 305M
0.6963.00
graphic
product photoEV 5CCAMColour Camera For Enterview 5
EA
46.50
graphic
product photoEV 5CKPCAMColour Camera/Keypad For Enterview 5
EA
110.00
graphic
product photoEV H5CColour Monitor For Enterview 5 & Multiway
EA
107.50
graphic
product photoEV H5AOAudio Handset For Enterview 5 & Multiway
EA
32.50
graphic
product photoEV EXITExit Button for Magnetic and Electric Locks
EA
11.70
graphic
product photoEV EBGGreen Emergency Door Release - Surface Mount
EA
10.00
graphic
product photoEV BPS12v Dc 2amp Boxed Power Supply - Electric Locks
EA
17.80
graphic
product photoEV ML250250kg Mag Lock c/w LZ Brackets
EA
51.90
graphic
product photoDE 203Surface Door Yale Lock Release - 12v AC/DC - Fail Secure
EA
10.50
graphic
product photoDE 204Flush Mortice Lock Release - 12v AC/DC - Fail Secure
EA
10.50
graphic
