Enterview 5 Hands Free & Keypad Colour Door Entry System

part of Video Door Entry Systems

Main Index • Technical • View Your Order / Checkout • Quick Order Entry • Stock Availablity • Delivery

5060224100226 EV5CKPHF

Handset / Monitor
240(W) x 175(H) x 38D)mm

Door Access / Camera
74(W) x 182(H) x 59(D)mm

Note. EV3BPS is required to power an electric lock release.

Simple 4 core cable installation

Up to 70m distance between camera and first handset with Cat5e cable

Up to 3 additional monitors per system
Up to 2 additional audio handsets per system
Up to 2 camera call points per system
Door release activation button
Two camera input
Simple 4 core cable installation
Supplied with remote 12V power supply

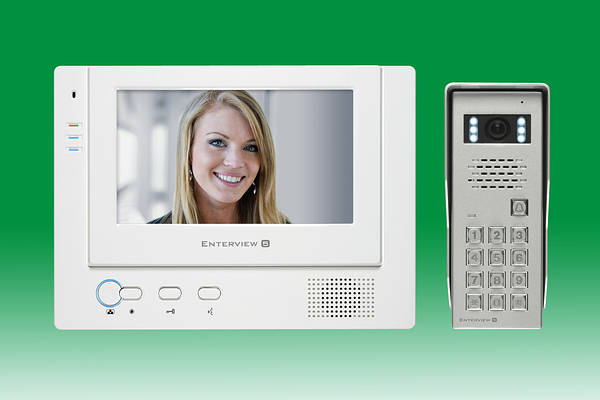

Enterview 5 Hands Free & Keypad Colour Door Entry System

Enterview 5 is the latest generation of this popular range of video door entry systems.
The EV5CKP-HF cleverly combines video door entry with access control in a single compact unit .
Built in to the vandal resistant camera unit is an illuminated pin code entry pad .
The buildings occupiers simply key in their code for entry , visitors request entry by pressing the clearly marked door bell button.

EV5CKP-HF provides superb full colour images in all light conditions along with high quality full duplex speech
between handset and the external camera call point
Images at night are enhanced by automatic activation of 4 high intensity LEDs .
The stylish low profile hands free monitor unit provides a facility to activate a lock release ,
transfer calls to other handsets and select the video feed from the camera call point on demand

New to EV5 is the ability to connect two external camera call points .
Very useful on buildings with front and rear entrances .
In addition to an extra camera call point the system can also accept up to three further video handsets
and two audio only handsets at convenient points around the property .

Cabling of Enterview 5 systems is simple .
The included power supply feeds suitable voltage to both the monitor and camera .
An Additional power supply ( EVBPS ) is only required when introducing a lock release .
There is no need for specialist video cable , Cat5 is recommended .
Simply bring cable from the camera / s to a central location and then take a separate cable to each monitor on the system .
Power supplies for the monitors can be located close to each monitor or centrally but should be no more than 40m from the monitor position .
