63 Amp 30mA 4 Pole RCD (Type A) - Hager
Product Code: HG CDA463U
3250611614944
CDA463U
Loading …
25 mm
within an Enclosure
Hager - RCD

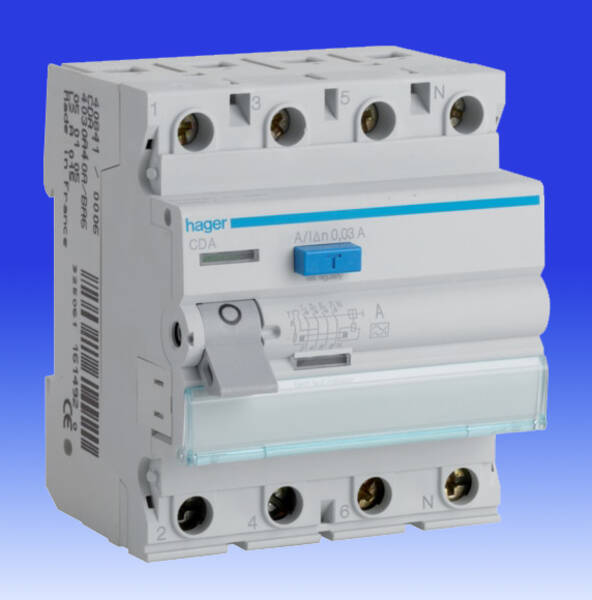

63 Amp 30mA 4 Pole RCD (Type A)
63 Amp 30mA 4 Pole RCD (Type A)
An RCD provides protection against earth faults occurring in equipment and reduces the effects of electric shock on human beings and thus saves lives.
An RCD measures the current flowing in the live and neutral cables and if there is an imbalance, that is current flowing to earth above the RCD sensitivity, the RCD will trip and cut off the supply.
- Hager 4 pole RCDs may be used to provide earth fault protection on 3 phase, 3 wire systems, as the current balance mechanism does not require a neutral to be connected in order to operate effectively.
- Hager RCDs must never be used as the sole method of direct contact protection, but are invaluable in providing supplementary protection in high risk environments where damage may occur.
- However Hager 4 pole RCDs do, ideally, require a neutral conductor to be provided on the supply side of the RCD in order to ensure that the test circuit operates satisfactorily.
- Where connection of a neutral supply is not possible, then an alternative method of ensuring that the test button is operational is to fit a suitably rated resistor between the load side neutral pole and a phase pole not associated with the normal test button operation.
25 mm
within an Enclosure
Technical:CDA463U Datasheet - pdf 209kB RCD Selection and Info |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
HG CDA463U
63 Amp 30mA 4 Pole RCD (Type A) - Hager |
