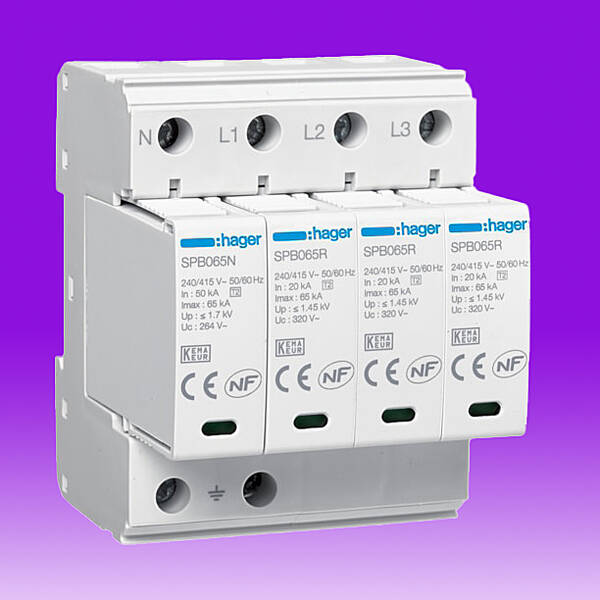

125A Surge Protection Kit Type II
Product Code: HG JK102SPD
5015652606482
JK102SPD
Loading …
Dimensions:
Length: 89.8mm
Width: 71mm
Depth: 65.7mm
Hager
125A Surge Protection Kit Type II
125A Surge Protection Kit Type II
Type 2 Surge Protection Kit for Hager 125A TP&N Distribution Boards to aid compliance with 18th Edition BS 7671.
A Surge protection device (SPD) kit specifically developed for Hager standard TPN (Type B) Distribution boards. This device protects electrical and electronic equipment against transients and the switching of transformers, lighting and motors. Developed to ensure optimal performance of SPD technology within Hager distribution boards. SPD is CT2 type to ensure compatibility
with all common UK Earthing arrangements e.g. TN-C-S (PME), TN-S and TT earthing arrangements.
This is an IEC Type 2 / class II SPD for 3 –phase power supply networks. A type 2 SPD is generally used in sub-distribution boards, downstream of the primary board which may incorporate a Type 1 SPD.
This SPD kit fits within the standard distribution board. Line, Neutral and Earth connections are via copper busbar and copper links, minimising SPD conductor losses, maximising the effective performance of the SPD (Up effective). SPD performance coordination with upstream Type 1 SPD within Hager MCCB Panelboards has been verified.
A Surge protection device (SPD) kit specifically developed for Hager standard TPN (Type B) Distribution boards. This device protects electrical and electronic equipment against transients and the switching of transformers, lighting and motors. Developed to ensure optimal performance of SPD technology within Hager distribution boards. SPD is CT2 type to ensure compatibility
with all common UK Earthing arrangements e.g. TN-C-S (PME), TN-S and TT earthing arrangements.
This is an IEC Type 2 / class II SPD for 3 –phase power supply networks. A type 2 SPD is generally used in sub-distribution boards, downstream of the primary board which may incorporate a Type 1 SPD.
This SPD kit fits within the standard distribution board. Line, Neutral and Earth connections are via copper busbar and copper links, minimising SPD conductor losses, maximising the effective performance of the SPD (Up effective). SPD performance coordination with upstream Type 1 SPD within Hager MCCB Panelboards has been verified.
- Power supply system:TN / TT
- Requirement class: SPD class II acc. to IEC 61643-11; SPD Type 2 acc. to EN 61643-11
- Max. continuous operating voltage Uc: L-N: 275V a.c. / N-PE: 260V a.c
- Nominal voltage Un: 230/400V AC 50/60 Hz
- Combination of high capacity voltage limiting varistors and N-PE spark gap
- Suitable for CT2 connection as per 534.4.3.2 BS7671 18th Edition
- Pluggable surge protection modules for ease of replacement
- Optical status indication for each cartridge:
Neutral = Healthy, Red = Replace - Each cartridge incorporates its own thermal disconnect mechanism
- Cartridges are mechanically coded to prevent mis-connection
- Cartridges can be routinely checked and changed if required without interrupting supply to loads
- No secondary back-up protection required in distribution boards of 125A In or less
Dimensions:
Length: 89.8mm
Width: 71mm
Depth: 65.7mm
Technical:HGJK102SPD Datasheet - 430kb pdf HGJKSPD Instructions - 1.15mb pdf |
|
