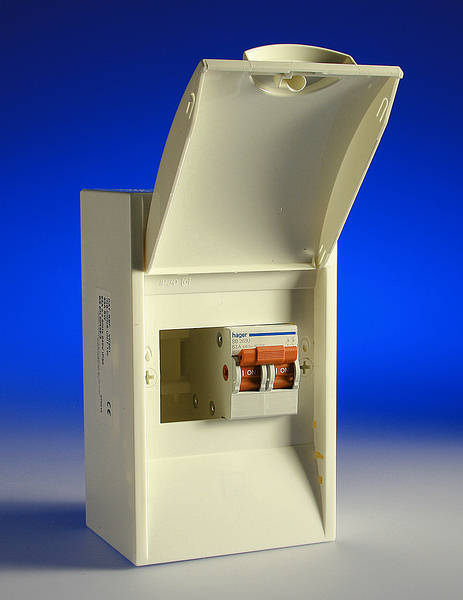

1 Way Insulated Consumer Unit - 63 Amp Switch VC201
1 Way Insulated Consumer Unit - 63 Amp Switch

Supplied less MCB's
Dimensions (mm)

Width: 110
Height: 180
Depth: 94
Hager
1 Way Insulated Board with 63 Amp Switch
1 Way with 63 Amp Switch

  • No restrictions on the internal configuration of the devices and terminal bars
  • Unique meter tail kit accessory with cable clamp feature and flexible links, allowing meter tails to simply push straight in
  • Built in level
  • Requires less time and tools to fit
  • IP4X rated removable and resealable top wall
  • Island style break-outs
  • Multiple, flexible fixing points - making installation faster, easier and safer
  • More (best in class) space between terminal bars and devices
Technical: Installation - pdf 480kb and 17th Edition Consumer Unit Guide - pdf 1.8Mb
Order Code Description Price (ex vat) Qty
HG VC2011 Way Insulated Consumer Unit - 63 Amp Switch
EA
11.60
graphic
Related items you may need.
Std MCBs for Hager boards
product photo
Hager MCB's ( Type B )
General Domestic Consumer Unit use

Hager MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
Technical: MCB Selection
Order Code Description Price (ex vat) Qty
HG MT1066 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT11010 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT11616 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT12020 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT13232 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT14040 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT15050 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT16363 Amp Hager MCB
EAEA 10+
2.992.99
graphic
Hager - RCBOs
product photo
Hager - RCBOs
Single module
30mA sensitivity combined
MCB/RCD.

An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit.

Single module RCBOs may be installed anywhere along the length of the busbar and will occupy one outgoing way.

They are suitable also for installation in Consumer Units and in two or four module enclosures.

The current carrying capacity of the cable should always exceed the current rating of the MCB.

MCB rating 6A type ‘B’ characteristics

With flying neutral lead for connecting to neutral terminal of switchboard or consumer unit
Order Code Description Price (ex vat) Qty
HG ADN1066 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN11010 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN11616 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN12020 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN13232 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN14040 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
Image Order Code Description Price (ex vat) Qty
product photoHG VAS01Blank for Hager Consumer Unit 1 Module
EAEA 10+
0.710.63
graphic
