12 Way Insulated Flexible Dual 63A RCD Consumer Unit VC712C1
12 Way Insulated Flexible Dual 63A RCD Consumer Unit

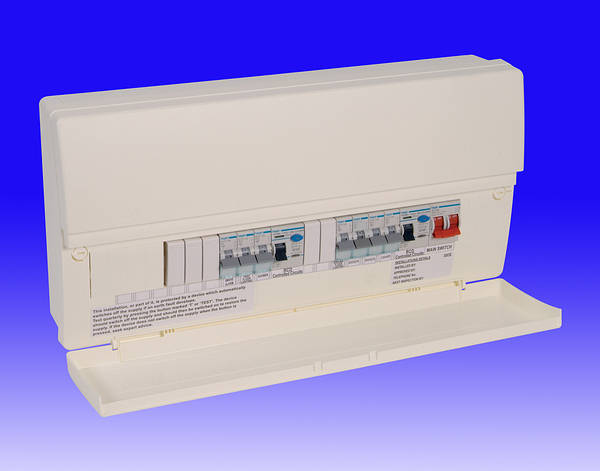

HG C714C1 Shown with MCB's

Units are supplied less MCB's


Width 490mm
Height 245mm
Depth 105mm

Weight 2.86kg
12 Way Insulated Flexible Dual RCD Consumer Unit

100A Main Switch + 2 x 63A 30mA RCD's
Hager Dual RCD Insulated Consumer Unit.

Allows Flexible Configuration of Mcb's on either RCD.

To use either MCB's or RCBO's
with the 100A Double Pole Main Switch for Non RCD protected ways
an extra neutral bar ( HG VAT05) is required



  • The Hager consumer unit has been designed to be the most versatile unit on the market today.
  • Snap-able busbar allows quick configuration of installation
  • Plain Door.
  • Integrated Spirit Level.
  • Large choice of fixing points.
  • Manufactured in UK.
  • IP4X is maintained if foam insert is used however if this is left out it becomes IP3X
  • Unit has large choice of fixing points
  • Rear cut-outs are optimised for size and position
  • Top wall removes for easy cable access and reseals to IP4X using the two foam strips provided
  • Terminal bars are top moulded for easy cable dressing, full rated to 100A
  • Optional key operated lock (HG VAL00) can be fitted to secure the lid over the devices to prevent tampering
Technical: Installation - pdf 480kb and 17th Edition Consumer Unit Guide - pdf 1.8Mb
Order Code Description Price (ex vat) Qty
HG VC712C112 Way Insulated Flexible Dual 63A RCD Consumer Unit
EA
54.00
graphic
Related items you may need.
Std MCBs for Hager boards
product photo
Hager MCB's ( Type B )
General Domestic Consumer Unit use

Hager MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
Technical: MCB Selection
Order Code Description Price (ex vat) Qty
HG MT1066 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT11010 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT11616 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT12020 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT13232 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT14040 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT15050 Amp Hager MCB
EAEA 10+
2.992.99
graphic
HG MT16363 Amp Hager MCB
EAEA 10+
2.992.99
graphic
Hager - RCBOs
product photo
Hager - RCBOs
Single module
30mA sensitivity combined
MCB/RCD.

An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit.

Single module RCBOs may be installed anywhere along the length of the busbar and will occupy one outgoing way.

They are suitable also for installation in Consumer Units and in two or four module enclosures.

The current carrying capacity of the cable should always exceed the current rating of the MCB.

MCB rating 6A type ‘B’ characteristics

With flying neutral lead for connecting to neutral terminal of switchboard or consumer unit
Order Code Description Price (ex vat) Qty
HG ADN1066 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN11010 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN11616 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN12020 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN13232 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
HG ADN14040 Amp 30mA RCBO - Hager
EAEA 3+
23.7522.00
graphic
Image Order Code Description Price (ex vat) Qty
product photoHG VAT05Hager Terminal Bar 5 Way
EA
2.50
graphic
