12 Way Split Consumer Unit - 100A Switch + 63A 30mA RCD VC766HG

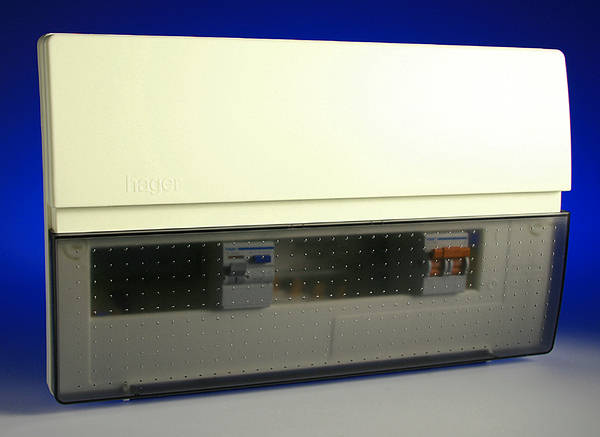

12 Way Split Consumer Unit - 100A Switch + 63A 30mA RCD

Supplied less MCB's
Dimensions (mm)

Width: 380mm
Height: 245mm
Depth: 105mm
12 Way Split Board with 100A Switch + 63A 30mA RCD
12 Way
6 ways with 100 Amp Switch
6 ways protected by 63 Amp 30mA RCD


  • No restrictions on the internal configuration of the devices and terminal bars
  • Unique meter tail kit accessory with cable clamp feature and flexible links, allowing meter tails to simply push straight in
  • Built in level
  • Requires less time and tools to fit
  • IP4X rated removable and resealable top wall
  • Island style break-outs
  • Multiple, flexible fixing points - making installation faster, easier and safer
  • More (best in class) space between terminal bars and devices
