4.9 Watt 38° GU10 High Power DIMMABLE LED 240v -  Warm White - V9

  part of  Dimmable Energy Saving Lamps
Main Index   •   Technical   •   Quick Order Entry   •   My Account   •   Stock Availability   •   Delivery
View Your Basket Basket

Customer Services: 01293 565 630

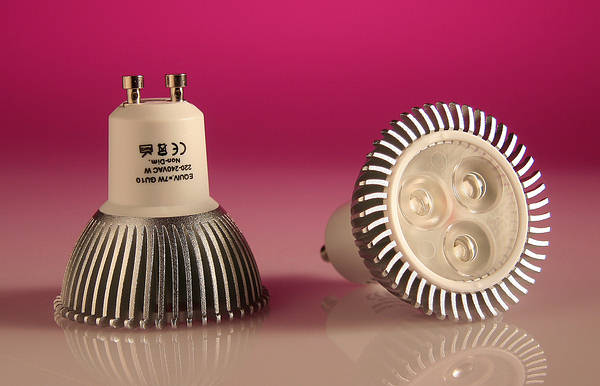

4.9 Watt 38° GU10 High Power DIMMABLE LED 240v - Warm White - V9   LTGUD9WW
4.9 Watt 38° GU10 High Power DIMMABLE LED 240v -  Warm White - V9

Approx Light Output
conservatively compared to


LT GU3WW
40w GU10 with a warm white light

Average Life* 3 years


LED lamps use a fraction of the energy cost of regular halogen lamps and will more than pay for themselves.

Potential Energy Cost Savings
@ 0.20p per kW x 8 hours per day
£26.00 per year


Voltage range 100v to 240v
Use World Wide
without loss of light output

Bench Test - Lux Magazine April 2011
LT GU7WW Extracts

We put the latest GU10 LED lamp from TLC through our rigorous bench test - and were blown away by its efficiency

LED lamps have had a bad name in the industry for some years. Poor output, terrible luminous efficacy and disappointing colour quality have meant that many users are once bitten, twice shy

Put it through the rigorous Lux magazine bench test at the 42 Partners laboratories in Wolverhampton.

What really impressed us was the lumen output of 240 lumens.

Its efficiency is extraordinary and puts it in a class of its own. Our measured performance of 65lm/W blows halogen away, and marks this out as a well-engineered light source.

LEDlite Dimmable
4.9 Watt 38° High Power GU10 LED Lamp - V9
Warm White - 2500 - 2900k
Next Generation
Similar to "normal" incandescent bulbs and GU10 halogen Lamps, giving a warm cosy feel

LEDlite - Advanced High Power LED lamps

Light output = to 9w Standard GU10 LED Lamp
These lamps are compliant with Part L1a Energy Criteria

They are exactly the same size as traditional halogen GU10 lamps,
so you can directly replace your older, inefficient lamps.
Suitable for indoor or outdoor use in spotlights or downlighters

Producing a super bright light, in warm white

Using less than 5w of power, these are the ultimate energy saving lamp.
Creating negligible heat and can last up to 15 times longer than halogen equivalents.

These high performance LED's are of outstanding performance and quality.
and not to be confused with cheaper budget LED's on sale!

Use with LEDlite or approved dimmer

  • Average Life: 3 years
  • Beam Angle: 38°
  • Cap Type: GU10
  • Colour Temperature: 2500 - 2900k
  • Light output colour: - Warm White
  • Diameter: 50mm
  • Length: 54mm
  • Raw Lumen per LED 140lm x 3 LEDs 420lm
  • Lumens: 300
  • Effective Lumens: 540
  • Equivalent: 40w GU10 Halogen
  • Voltage: 100v to 240v
  • Wattage: 4.9w
  • High power LEDs for super brightness with low heat dissipation
  • High quality LEDs for minimum light deterioration and high colour consistency
  • Quality Optics for Even Light Spreads
  • Highly reliable LEDs and Electronics for a nominal lamp life of 30,000 hours *
  • Low power consumption (Energy Class A)
  • Low failure rate backed by a 3 year Guarantee
  • Storage temperatures (-30°C to +85°C)
  • Operating temperatures (-20°C to +40°C)
  • CE, ROHS compliance with EMC & RFI suppression:
  • Safety Fused cut-outs.
  • Class-2 double-insulation
Order Code Description Price (ex vat) Price (inc vat) Qty
LT GUD9WW4.9 Watt 38° GU10 High Power DIMMABLE LED 240v - Warm White - V9
EAEA 10+
16.0015.00
EAEA 10+
19.2018.00
graphic
Related items you may need.
Danlers Quiet Dimmer Module
product photo


Link to
MK Logic Grid Plus:

MK Logic Grid Plus

Quiet Dimmer Module
for MK Logic Grid Plus
400w - 2 Way
Quiet Dimmers which use ‘Trailing Edge Technology’
Slave switches allow lamps to be switched and dimmed from many locations.

Also suitable for use with LEDlite Dimmable GU10 LED lamps

Functions
Slim buttons give an easy press action. Holding the button down dims
or brightens the light to any level. A quick press switches off. Another
press returns the lamp softly to its previous brightness.

Special Features
Quiet operation owing to trailing edge technology. All versions
are suitable for mains halogen (e.g. GU10) lamps without the need for de rating.
The soft start feature prolongs the lamp life.
Multi-way switching and dimming can be achieved from any position by using the matching slave switches (DN SSGS).
These grid dimmer modules fit any position on the appropriate grid or plate system.
Click the order code for Accessories, Boxes and GrommetsTechnical: Dimmer Catalogue, 1 and 2 way Wiring Diagram and Spec Sheet
Order Code Description Price (ex vat) Price (inc vat) Qty
DN DQDQuiet Dimmer Module for MK Grid Plus 40w - 400w - 2 WayExtended Range* )
EA
33.50
EA
40.20
graphic
LEDlite LED Dimmer Switches
LEDlite Low Load
120w 2 Way
LED & CFL Dimmer Switches
Made specifically for use with LEDlite Dimmable GU10 LED's
and
Quality dimmable CFL Lamps

The low load dimmer switch was developed to address
any possible 'under loading' problems regarding our groundbreaking dimmable CFLs
and as such are viewed as how many Varilight DigiFlux CFLs they can control…

They can dim between 1 and 6 dimmable CFLs perfectly
but have tested very well down to a single 11 watt dimmable CFL (Megaman)

  • Manufactured and designed in the UK
  • 100% tested and inspected
  • Fully compliant with British Safety Standards
  • Top quality high current components for extremely long-life
  • Fully Guaranteed
  • Low noise operation
  • Leading Edge Dimmer
  • LEDlite Dimmable GU10 LED's
    Dims between 100% to 20% Approx
  • Dims upto 20 Ledlite Dimmable GU10 lamps
  • Also available as a module to mix in with most existing dimmer switches VL LMOD1
  • CFL Lamps
    Min wattage is 11 Watt to Max wattage is 120 Watt (but 6 max Megaman lamps)
Click the order code for Accessories, Boxes and GrommetsTechnical: Dimmer Selection Guide .PDF (50kb)
Image Order Code Description Price (ex vat) Price (inc vat) Qty
product photoVL LQ1W1 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - White
EAEA 3+
8.007.50
EAEA 3+
9.609.00
graphic
product photoVL LQ2W2 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - White
EAEA 3+
15.0014.00
EAEA 3+
18.0016.80
graphic
product photoVL LC11 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Chrome
EAEA 3+
9.509.00
EAEA 3+
11.4010.80
graphic
product photoVL LC22 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Chrome
EAEA 3+
17.0016.00
EAEA 3+
20.4019.20
graphic
product photoVL LDL1S1 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Piano Black
EAEA 3+
9.509.00
EAEA 3+
11.4010.80
graphic
product photoVL LDL2S2 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Piano Black
EAEA 3+
16.0015.00
EAEA 3+
19.2018.00
graphic
product photoVL LDM1S1 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Mocha
EAEA 3+
13.0012.00
EAEA 3+
15.6014.40
graphic
product photoVL LDM2S2 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Mocha
EAEA 3+
23.0022.00
EAEA 3+
27.6026.40
graphic
product photoVL LDQ1S1 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Premium White
EAEA 3+
9.509.00
EAEA 3+
11.4010.80
graphic
product photoVL LDQ2S2 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Premium White
EAEA 3+
16.0015.00
EAEA 3+
19.2018.00
graphic
product photoVL LDS2S2 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Stainless Steel
EAEA 3+
23.0022.00
EAEA 3+
27.6026.40
graphic
product photoVL LP11 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Graphite
EAEA 3+
9.509.00
EAEA 3+
11.4010.80
graphic
product photoVL LP22 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Graphite
EAEA 3+
17.0016.00
EAEA 3+
20.4019.20
graphic
product photoVL LS11 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Brushed Chrome
EAEA 3+
9.509.00
EAEA 3+
11.4010.80
graphic
product photoVL LS22 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Brushed Chrome
EAEA 3+
17.0016.00
EAEA 3+
20.4019.20
graphic
product photoVL LMOD1 2 Way 120w LEDlite LED & Low Load Dimmer Switch - Module
EAEA 3+
7.507.00
EAEA 3+
9.008.40
graphic
product photoVL LG11 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Georgian Brass
EAEA 3+
9.509.00
EAEA 3+
11.4010.80
graphic
product photoVL LG22 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Georgian Brass
EAEA 3+
17.0016.00
EAEA 3+
20.4019.20
graphic
product photoVL LV11 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Edwardian Brass
EAEA 3+
9.509.00
EAEA 3+
11.4010.80
graphic
product photoVL LV22 Gang 120w 2 Way LEDlite LED & Low Load Dimmer Switch - Edwardian Brass
EAEA 3+
17.0016.00
EAEA 3+
20.4019.20
graphic
LEDlite Power Grid Dimmers
LEDlite Low Load
LED & CFL Grid Dimmer
10watts - 120watts 2 Way - White
Made specifically for use with LEDlite Dimmable GU10 LED's
and
Quality dimmable CFL Lamps

for use with Varilight Power Grid Plates and Accessories
  • Power Grid Plate Finishes - include
  • Black
  • Brass
  • Chrome
  • Graphite
  • Premium White
  • Stainless Steel
Technical: Dimmer Selection Guide .PDF (50kb)
Image Order Code Description Price (ex vat) Price (inc vat) Qty
product photoVL P120CLedlite LED & CFL Low Load Grid Dimmer Switch - 10w - 120w 2 Way - Chrome
EAEA 3+
9.308.70
EAEA 3+
11.1610.44
graphic
product photoVL P120SLedlite LED & CFL Low Load Grid Dimmer Switch 10w - 120w - Brushed Steel
EAEA 3+
9.308.70
EAEA 3+
11.1610.44
graphic
product photoVL P120WLedlite LED & CFL Low Load Grid Dimmer Switch 10w - 120w - White
EAEA 3+
8.908.15
EAEA 3+
10.689.78
graphic
