20 Amp MK MCB C Type - Motor Rated

  part of  MK Sentry MCB's - Type B & C
Main Index   •   Technical   •   Quick Order Entry   •   My Account   •   Stock Availability   •   Delivery
View Your Basket Basket

Customer Services: 01293 565 630
20 Amp MK MCB C Type - Motor Rated 5017490195791  8720s

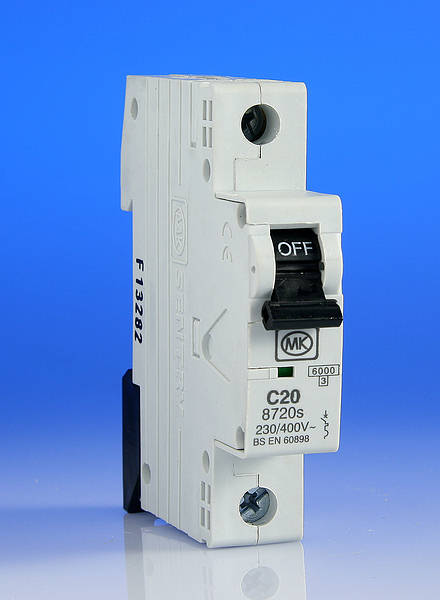

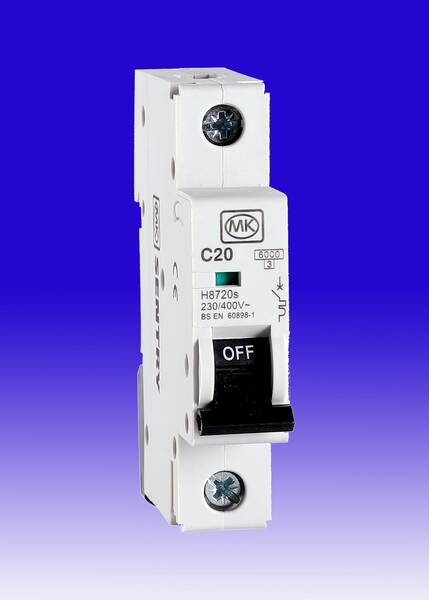

20 Amp MK MCB C Type - Motor Rated

MCB terminal capacity,

25 mm on ratings up to and including 20A,

35 mm on all ratings 32A and above.

Sentry MCB ( Type C )

20 Amp MCB C Type - Motor Rated

Type C devices are capable of supplying the majority of inductive and capacitive loads such as motors, transformers and tungsten or fluorescent lighting.Surges on energisation, for example with discharge lighting, may well reach 25 times the rated current of the device, but only for very short duration. Type B devices will often be adequate, but for more specialised circuits, a Type C may be required. The lighting fitting manufacturer’s recommendations should be observed.
Sentry MCB detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.

  • All Sentry MCBs have a short circuit breaking capacity of 6000A (M6).
  • The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.
  • The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.
  • When the green portion of the dolly is visible, then a contact gap of 4 mm has been achieved. Sentry MCBs may therefore be used as single pole isolating switches where appropriate.
Technical: MCB Selection and Full Details and Specification
Order Code Description Price (ex vat) Price (inc vat) Qty
MK 872020 Amp MK MCB C Type - Motor Rated
EAEA 10+
2.802.70
EAEA 10+
3.363.24
