Heat & Light c/w Extractor Fan - White HL1WF
Heat & Light c/w Extractor Fan  - White

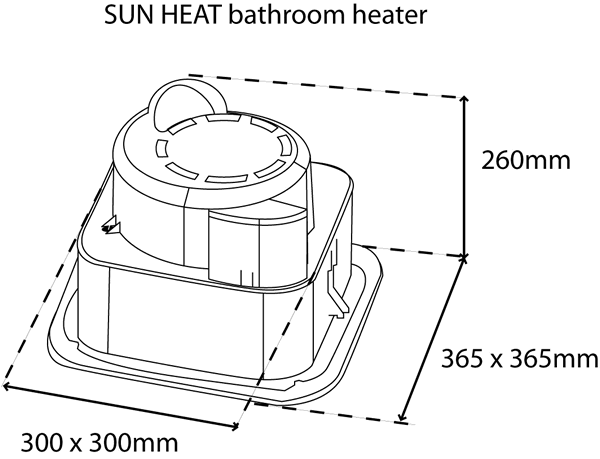

Cutout:- 300mm x 300mm
Fascia Size: - 365mm x 365mm
Min Depth: - 260mm

Heat & Light c/w Extractor Fan - White
The SUN HEAT bathroom heater incorporates heat and light in a complete sealed unit. Designed to be ceiling mounted and unobtrusive, this bathroom heater is the perfect modern solution to warmth and light in your bathroom.
With built-in Extractor Fan
Housing: - Constructed from steel plate.
Fascia: - High quality plastic resistant to colour change and signs of wear.
Available in two finishes, white and silver.

  • Heating: - Four long life 275w infra-red bulbs included.
  • Lighting: - Uses E27/R80/60w light bulb for illumination. - included.
  • Dual power setting 550w/1100w.
  • Quickly warms the bathroom with no pre heating required.
  • Switch - 3 or 4 button mains wall switch supplied
    or can be custom wired by an electrician
  • Voltage:230v / 50hz
  • Input Power:1160w
  • CE certified.
  • with built-in extractor fan
  • Extraction: - Motor – 230v 50hz 35w
  • The powerful quiet motor efficiently removes steam.
  • Extractor fan NOT Timed
  • Input Power: 1195w
  • Air Volume: 180m3/hr
  • Noise: 1.2 sones
  • Motor speed: 1150rpm
  • Duct Diameter: 100mm ( 1.5mts supplied )
Technical: Instructions - 520Kb and HLF1F Line Drawing
Order Code Description Price (ex vat) Qty
SH HL1FHeat & Light c/w Extractor Fan - White
EA
69.95
