10w Evo LED Floodlight c/w PIR - White
Product Code: SM E100PIRWH
5012483014073
LED100PIRWHE
Loading …
Height: 160mm.
Width: 80mm.
Depth: 50mm.
Timeguard
10w Evo LED Floodlight
c/w PIR White
10w Evo LED Floodlight
c/w PIR White

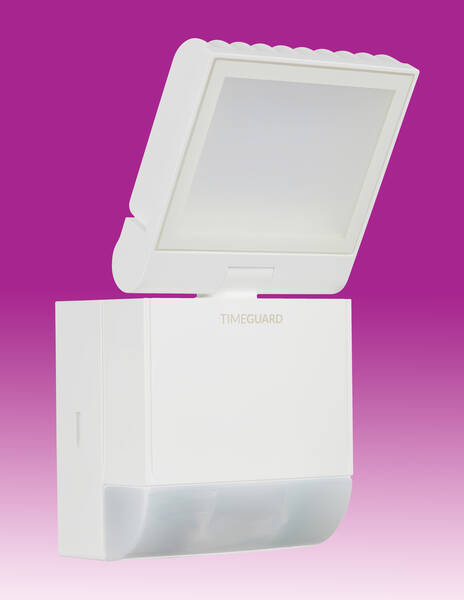

Timeguard have upgraded the popular LED100/200 series of LED Energy Saving PIR Floodlights with even more benefits and features.
We have taken on board customer feedback in the redesign to include a discreet 180° PIR detector with a 10m detection range and a slave terminal for control of up to 100W extra LED lighting.
A maximum of 4 floodlights can now be wired in parallel to enable any detector to turn ON all lights connected.

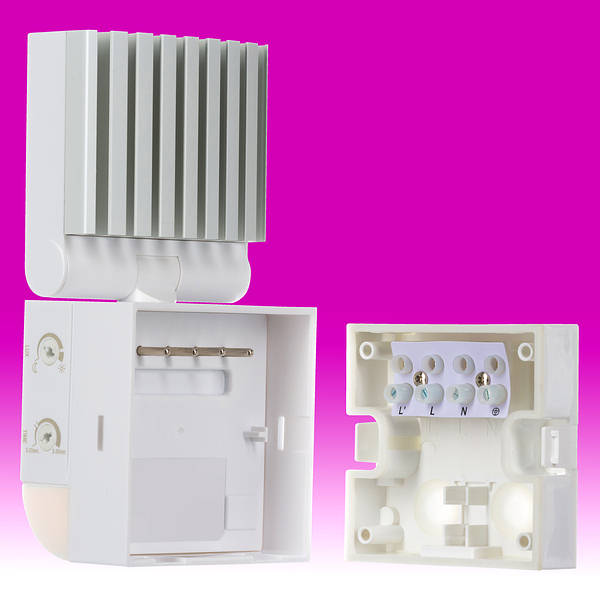

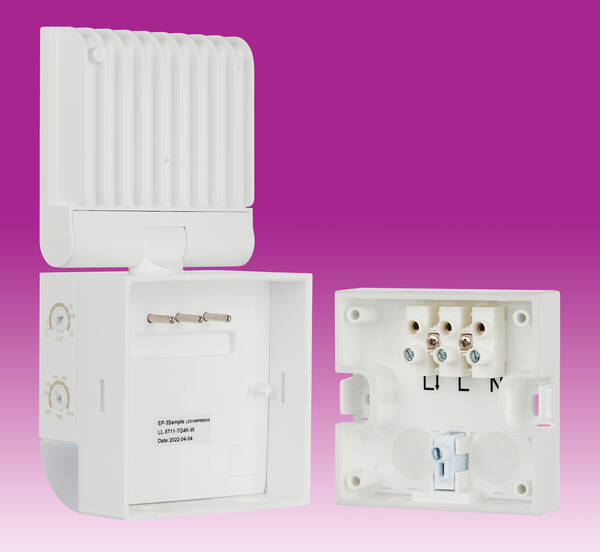

With a compact design, greater lumen output and of course our Fast-Fix pin connection for quick installation, the new LED100/200E range is a quality choice for new and existing installations.
We have taken on board customer feedback in the redesign to include a discreet 180° PIR detector with a 10m detection range and a slave terminal for control of up to 100W extra LED lighting.
A maximum of 4 floodlights can now be wired in parallel to enable any detector to turn ON all lights connected.
With a compact design, greater lumen output and of course our Fast-Fix pin connection for quick installation, the new LED100/200E range is a quality choice for new and existing installations.
- 1x 10W Powerful LED compact PIR floodlight.
- 1x 840lm lumens bright white light.

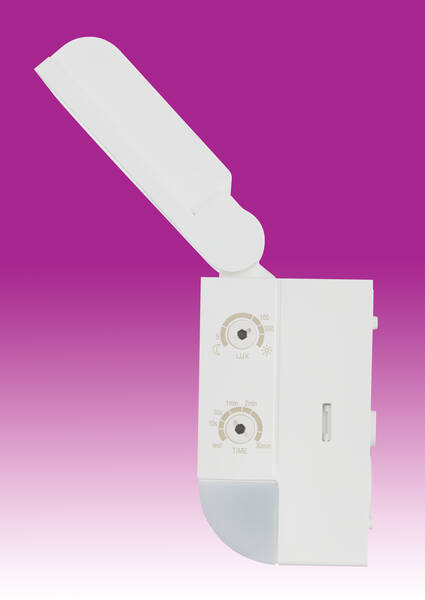

- Pan and tilt light aiming adjustment.
- Operating temperature -20°C to + 45°C.
- Colour temperature 4000k.
- Discreet 180° PIR detection with 10m detection area.

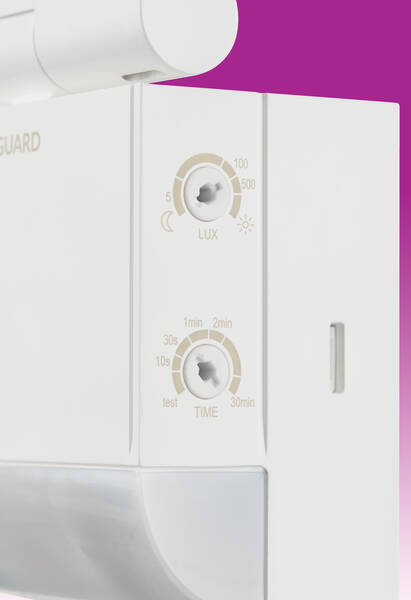

- Adjustable time setting 2 seconds to 30 minutes.
- Adjustable 2 – 200 LUX setting.
- Beam angle 90 x 90.
- IP55 weatherproof rating.
- Manual override.
- Parallel switching facility – a maximum of 4x LED100E/LED200E floodlights can be wired in parallel to enable any detector to turn ON all the lights connected.
- Operating Voltage 230V AC – 50Hz
- Lamp Type 10W LED
- LED Brightness (Lumens) 840
- Weatherproof Rating IP55
- Detection Range (Max) Metres 10
- Angle of Detection 180°
- Colour Temperature 4000k
- Light ON Time after Last Detection (Adjustable)2 Seconds (Min) to 30 Minutes (Max)
- Adjustable Light Level Control2 to 200 LUX
- EC Directives Conforms to Latest Directives.
- Slave terminal available for additional external lighting loads; LED max 100W, halogen max 300W, and fluorescent max 200W.
Height: 160mm.
Width: 80mm.
Depth: 50mm.
Technical:SME100PIR Instructions 3.6Mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SM E100PIRWH
10w Evo LED Floodlight c/w PIR - White |
