Timeguard

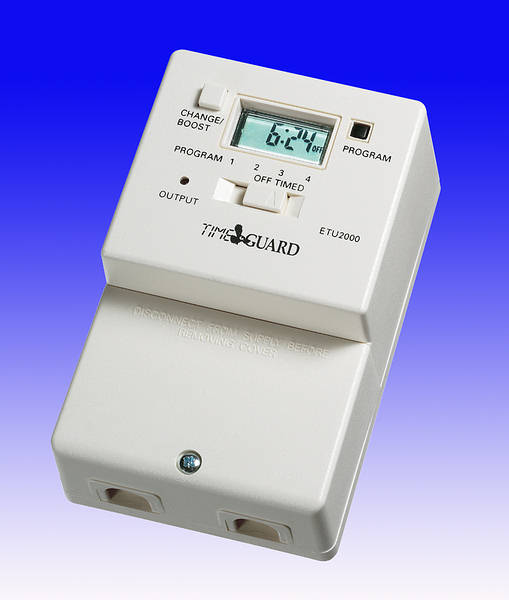

ETU2000 24 Hour Electronic Immersion Heater Timeswitch
Provides economical and convenient control of immersion heater systems.
Easily programmable with Timeguards two button system
and an easy to read digital display
-
Specification
- Timer Mode 24Hr
- Setting Type Digital
- Operating Voltage 230V AC
- Switch Rating 230V AC 13 amp Resistive (3kW), Inductive 6A
- Operating Temperature -10 to 50°C
- Battery 1000Hr Rechargeable
- Cable Connection 1.5 2.5mm2 Flexible Cable
- Conforms to Directives 73/23/EEC, 89/336/EEC
-
13A (3kW) loading.
- Switches ON & OFF up to 4 times per day.
- Repeats programmes day after day indefinitely.
- Shortest switching time 1 minute.
- Manual override until next programme change.
- Permanent OFF control for holidays and when alternative heating is available.
- Optional 1 or 2 hour boost facility.
- Programme review.
- 1000 hours rechargeable memory back-up.
- Integral thermal fuse for extra protection.
- Bottom or rear entry for cable.
Note: ETU2000 can be used with up to 500W of fluorescent or low energy lighting and up to a 1hp motor.
Can also be used with up to 1500W of filament lighting.
Cannot be used with discharge lighting, (e.g. SON and Metal Halide).
Dimensions
Width 74m,
Height 115mm,
Depth 50mm
