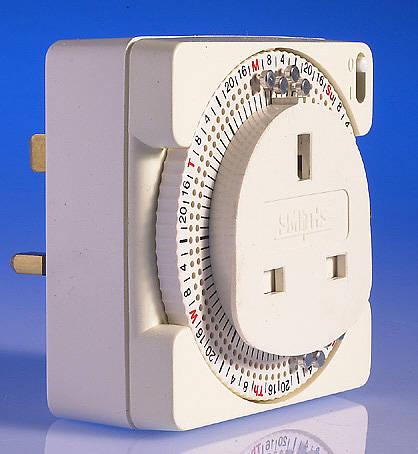

7 Day Plug In Time Clock Timeguard TS820
7 Day Plug In Time Clock
7 Day Plug In Time Clock
Suitable for most domestic security and appliance switching applications.
The TS820 has all the features and benefits of the TS800 plus the switching patterns vary from day to day over the period of a week with a 4 hour minimum switching interval which can be increased in 2 hour steps.



  • Up to 21 ON & OFF programmes per week (additional pins required).
  • Automatically switches on / off at pre set times during the day.
  • Daily variations possible
  • Manual over-ride.
  • Timer Mode: 7 Day
  • Setting Type: Pins
  • Operating Voltage: 220 - 240V AC 50 Hz
  • Switch Rating 240V AC: 13 amp Resistive (3kW), Inductive 5A
  • Operating Temperature: 0 to 40 °C
  • Conforms To Directives: 73/23/EEC; 89/336/EEC
  • Dimensions (mm): Height 73, Width 73, Depth 44
  • Note: Not to be used with fluorescent or low energy lighting. Can be used with filament lighting up to 400W (1200W - TS700, TS720, TS830, TS840). Cannot be used with discharge lighting (e.g. SON and Metal Halide).
Technical: Instructions
Order Code Description Price (ex vat) Qty
SM TS8207 Day Plug In Time Clock
EAEA 3+EA 6+
9.408.858.75
