- Delivery rate
Up to 16 cups at a time - Rating
1.5 kW @ 230V AC - Boiling system
Open outlet, vented system
designed to operate at 98°C - Filtration system

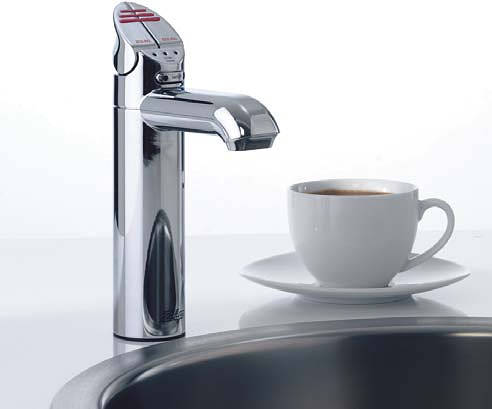

Triple-action sub micron cartridge - Tap head
Chrome plated electronic tap
with touch pads and LED indicators - Boiling unit
White corrosion resistant powder coated zinc
seal with front filter access door - Safety features
Child-proof safety lock on tap - Approvals
WRAS Approved and
CE Endorsed - Warranty
Two year product guarantee with on-site service support from date of purchase applies to UK installations only.
| - Installation
The tap should be positioned either on a suitable sink or on a Zip Tap Font
If installing on a sink, the tap should be mounted so that it will dispense into the sink
The boiling unit should be located as closely as possible to directly beneath the tap, with no ‘dog-legs’ in the silicone pipes
The boiling unit must be installed with clearances of 50 mm left and right - Plumbing
The water supply must be potable (drinkable)
If static pressure exceeds 7 bar, a pressure reducing valve must be fitted
An isolating valve should be installed between the water supply and the under-counter unit - Venting
The cupboard containing the boiling unit must be amply ventilated:
cupboard doors must be offset from cupboard by 4 mm all round for ventilation, using 4 mm buffers provided and a door vent fitted - Electrical
To be wired to a double pole fused spur, minimum break rating of 13 amps
Installation must comply with current IEE regulations - Precautions
In some hard water areas where mineral scale accumulation can become a problem, consideration should be given to the maintenance required - Technical advice
Contact Zip on 0870 608 8888
|
