- Delivery rate
Up to 24 cups at a time
and up to 25 glasses of chilled water at a time - Rating
2.1 kW @ 230V AC
(24 cups model) - Boiling Syetem
Open outlet, vented system
designed to operate at 98°C - Chilling system
Fan-cooled condenser type - Filtration system
Triple-action sub micron cartridge - Tap head

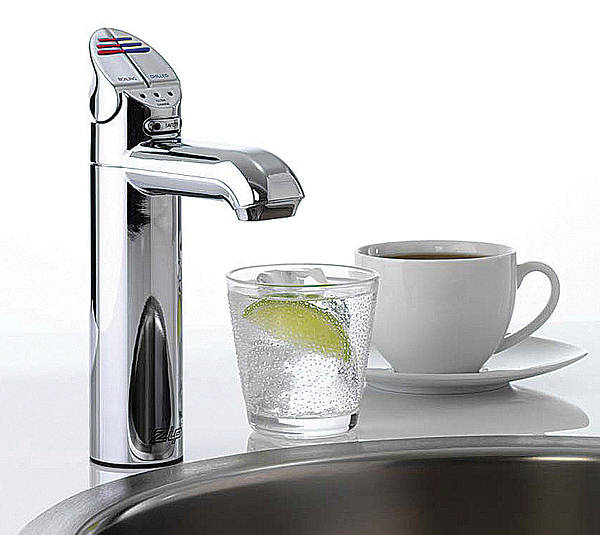

Chrome plated electronic tap
with touch pads and LED indicators - Boiling and Chilling Unit
White corrosion resistant powder coated zinc
seal with front filter access door - Safety features
Safety lock on tap Under-sink
Safe tray with leak detector - Approvals
WRAS Approved and
CE Endorsed - Warranty
One-year
| - Installation
The tap should be positioned either on a suitable sink or on a Zip Tap Font
If installing on a sink, the tap should be mounted so that it will dispense into the sink
The boiling and chilling unit should be located as closely as possible to directly beneath the tap, with no ‘dog-legs’ in the silicone pipes
The boiling and chilling unit must be installed with clearances of 50 mm left and right - Plumbing
The water supply must be potable (drinkable)
If static pressure exceeds 7 bar, a pressure reducing valve must be fitted
An isolating valve should be installed between the water supply and the under-counter unit - Venting
The cupboard containing the boiling and chilling unit must be amply ventilated:
cupboard doors must be offset from cupboard by 4 mm all round for ventilation, using 4 mm buffers provided and a door vent fitted - Electrical
To be wired to a double pole fused spur, minimum break rating of 13 amps
Installation must comply with current IEE regulations - Precautions
In some hard water areas where mineral scale accumulation can become a problem, consideration should be given to the maintenance required - Technical advice
Contact Zip on 0870 608 8888
|
