L220N

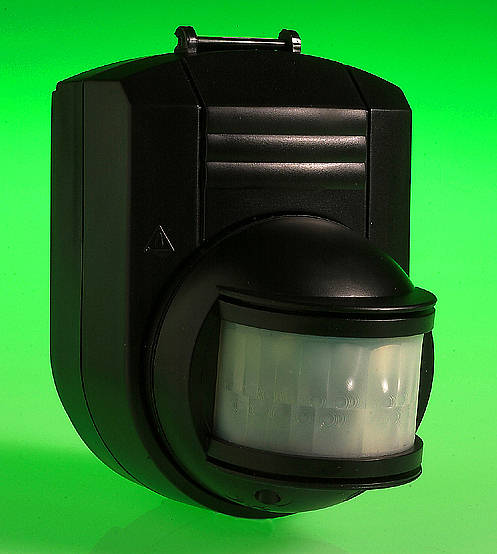

SPECTRA 200 Passive Infra Red Movement Detector Black

Spectra Passive Infra Red Movement Detectors
15 metre detection range
2 detection zones for reliable activation without blind spots
200 deg detection area

Passive Infra Red Movement Detector -
senses the movement of body heat in detection zones,
and automatically switches on the light

The range of PIR Movement Detectors are high specification models
that turn new or existing outdoor lighting into automatic lights for security safely and convenience.

Full 200° detection area - wide angle coverage to protect doors and windows
Hinged body allows easy access for wiring connections and installation
Fully adjustable ball type detector provides maximum flexibility
Dimensions: 110 x 95 x 73mm

Detector can control lighting up to a total power loading of 1000W Tungsten Filament or 500W Tungsten Halogen Lighting.
IP44

Technical: Instructions 78kb pdf

Order Code

Description

Price (ex vat)

Qty

SS 6016

Spectra - 200 deg PIR Sensor 1kW Load - Black

EA
19.40
