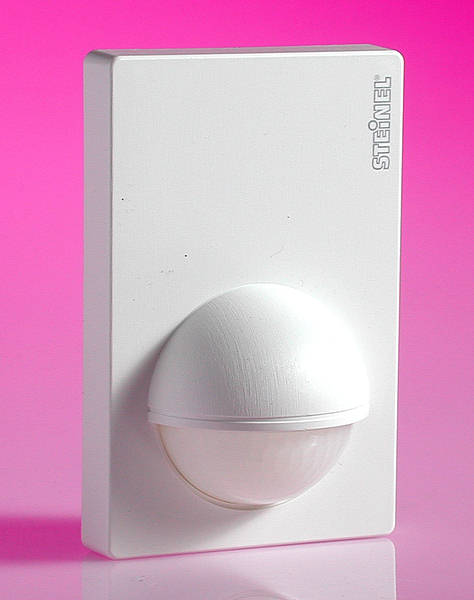

Steinel - 180 deg PIR Sensor 1kW Load - White   IS180-2 White
Steinel - 180 deg PIR Sensor 1kW Load - White
Steinel 180 deg White Pir Sensor


  • Voltage: - 230/240 Volts
  • Output: - max 150W
  • Switching Capacity: -
    Fluorescent loads max 500W
    Tungsten lamps max 1000W
  • Angle of coverage: - 180 Degrees horizontal
  • Sensor reach: - Interchangeable lens 5M / 12M max
  • Time setting: - 10 Seconds - 15 Minuets
  • Lux Setting: - 2 - 2000 Lux
  • Enclosure:- IP44
  • Dimensions: - (H x W x D) 1210 x 76 x 56 mm
Technical: IP Rating Chart and Specifications / Instructions
Order Code Description Price (ex vat) Qty
ST IS180WSteinel - 180 deg PIR Sensor 1kW Load - White
EAEA 3+
37.8135.32
