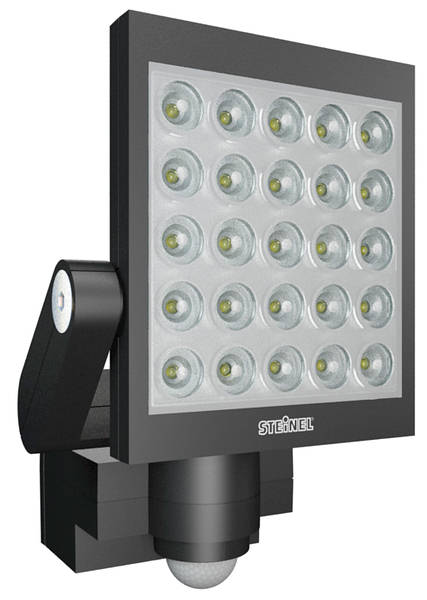

- XLed with 25 LED's aluminium flat design fitting.
- Approx. 60w power consumption.
- Integrated motion detector providing 240° all-round coverage over a reach of 12 m.
- Housing tilts through: 200°
Housing swivels through: 270° - Integrated electronic ballasts.
- ATC – Active-Thermo-Control.
- External switching output capability for creating interconnected systems.
- 10% basic brightness mode (always 10% light at night or 10 minute "OFF" delay after responding).
- Can be installed under porches as no need to allow for any metre safety distance.
- Life of LED's: up to 50,000 hours.
- Simple, 2-stage assembly.
- 2/3 energy saving.
- Long llife LED's.
- *Intelligent Energy Saving
| - Voltage - 230v - 240v, 50 Hz
- Energy Consumed: 60w
- Light output approx: 300w Halogen
- Additional switching capacity
800w max. (resistive load,e.g. filament bulb)
400w max. (Inductive e.g. fluorescent lamps)
400w max. (electronic ballasts, capacitive, e.g. low-energy bulbs, 4 lamps max.) - Life of LEDs: - up to 50,000 hours
(at 3 hours/day, approx. 45 years) - Angle of coverage - 240° with sneak-by guard
- Reach - 12 m max.
- Sensor system 9 detection levels,
304 switching zones - Time setting - 5 sec. – 15 min.
- Twilight setting - 2 – 2000 lux
- Brightness control
- Selectable
10% basic brightness mode (10-minute OFF delay at 10% brightness after time setting elapses) - Manual override - 4 hr
- Special features
Housing tilts through: 200°
Housing swivels through: 270°
|
