Earth Loop and PSCC Tester 8978
Earth Loop and PSCC Tester
Earth Loop and PSCC Tester - with RCD LOC

17th Edition Test Meter

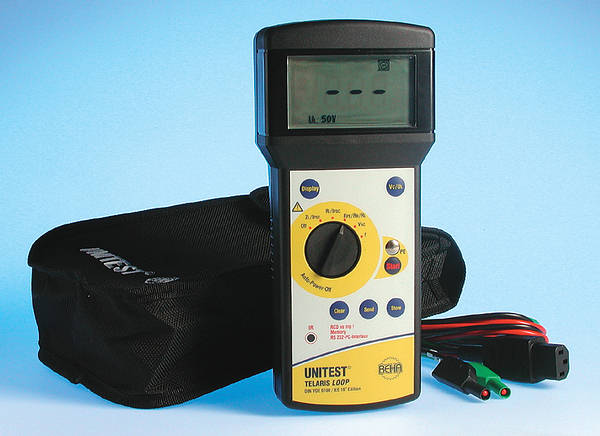

A unit designed to allow the user to quickly establish earth loop impedance, mains internal resistance and prospective short circuit current.
Enables the user to measure the individual conductor resistance independently: protective conductor resistance, phase resistance and neutral conductor resistance.
Designed to test the earth loop resistance without tripping any RCD.
Includes an integrated socket test with contact electrode to enable the user to quickly establish incorrectly installed sockets and/or protective conductor failures.
Designed to test frequency ranges up to 200 Hz. and to test AC voltages up to 300 V AC.
Includes a built-in memory capability allowing the user to store up to 250 test results.
Supplied with an Infra Red / RS 232 serial port for transferring test data or printing out results via PC.
Enables the user to pre-select the maximum permissible contact voltage.
Includes a clear and large LCD display providing the user with an optimum visual indication of both test values and limits.
Includes an integrated energy management system with auto-power-off function to ensure optimum battery usage. Supplied complete with a standard carrying case.

  • Display 3½ digit LCD
  • Measurement Ranges
  • Loop resistance / Resolution -
    0,05…1999 Ohm / 0,01…1 Ohm
  • Loop resistance (Tolerance) -
    ±(5%+5 Digit)
  • Internal Mains Impedance / Resolution -
    0,05…19,99 Ohm / 0,01 Ohm
  • Internal Mains Impedance (Tolerance) -
    ±(5%+5 Digit)
  • Neutral conductor resistance / Resolution -
    0,05…19,99 Ohm / 0,01 Ohm
  • Neutral conductor resistance (Tolerance) -
    ±(5%+5 Digit)
  • Protective Earth Resistance / Resolution -
    0,05…1999 Ohm / 0,01…1 Ohm
  • Protective Earth Resistance (Tolerance) -
    ±(5%+5 Digit)
  • Phase resistance / Resolution -
    0,05…19,99 Ohm / 0,01 Ohm
  • Phase resistance (Tolerance) -
    ±(5%+5 Digit)
  • Voltage Measurement / Resolution -
    0…300 V / 1 V
  • Voltage Measurement (Tolerance) -
    ±(3%+3 Digit)
  • Mains frequency / Resolution -
    10…200 Hz / 0,1 Hz
  • Mains frequency (Tolerance) -
    ±(1%+2 Digit)
  • Contact Voltage -
    25 V / 50 V selection 250 values
  • Interface - IR / RS 232-interface
  • Short-Circuit Current / Resolution -
    2 kA, 20 kA, / 1A, 10A
  • Short-Circuit Current (Tolerance) - ±(5%+5 Digit)
  • Pollution Degree - 2
  • Overvoltage Category - CATIII / 300V
  • Protection - IP 50
  • Auto-Power-Off -
    after approx. 5 min
  • Safety Complying to -
    IEC 1010,IEC 1557-3,DIN VDE 0413-3
  • Power Supply - 1 x 9V IEC 6F22
  • Dimensions - > 235x103x70mm
  • Weight - approx. 600 g
Order Code Description Price (ex vat) Qty
TM DL750Earth Loop and PSCC Tester
EA
295.40
