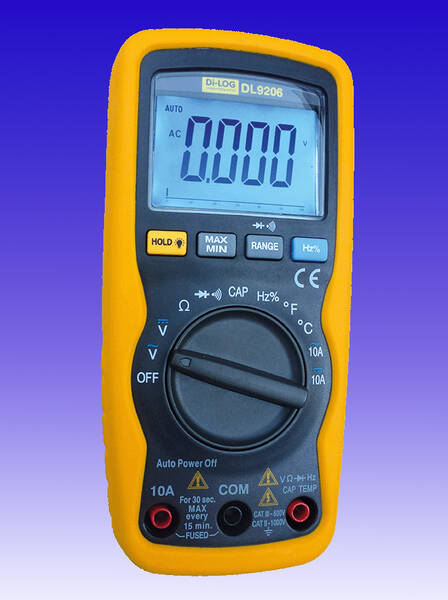

Compact Auto Ranging Digital Multimeter 1000v DL9206
Compact Auto Ranging Digital Multimeter 1000v
Compact Auto Ranging Multimeter - 1000v
See Data Sheet for full Specification Details

Compact auto ranging digital multimeter with 6000 count LCD display.
Full protection on all ranges, safety category to CAT 111 600 V
The high contrast 6000 LCD complete with bar graph provides
a high level clear display of measured values.

  • AC Voltage - 0.1mV to 750V
  • DC Voltage - 0.1mV to 1000V
  • AC Current - 0.1mA to 10A
  • DC Current - 0.1mA to 10A
  • Resistance - 0.1? to 60M?
  • Capacitance - 10pF to 40000uF
  • Frequency - 0.001Hz to 2.999MHz
  • Temperature - 20°C to 760°C
  • Diode Test - 0.3mA Typical 1.5V D.C
  • Power supply: 1 x 9V PPS Alkaline Battery (Supplied)
  • Dimensions: 150 (H) x 70 (W) x 48 (D) mm
  • Weight: 255g
Technical: DL9206 - Data - 780kb pdf and DL9206 - Manaul - 2..8Mb pdf
Order Code Description Price (ex vat) Qty
TM DL9206Compact Auto Ranging Digital Multimeter 1000v
EA
31.95
