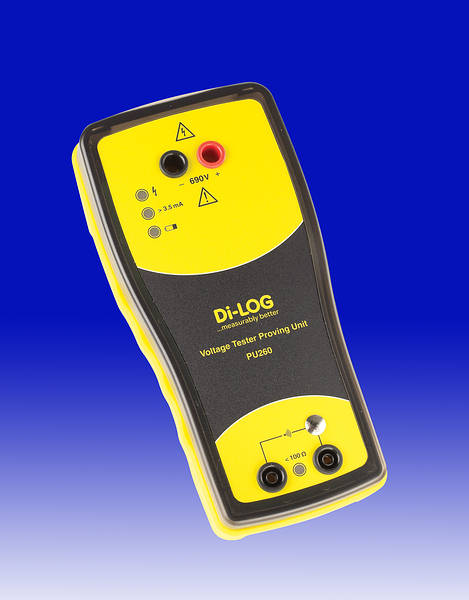

Proving Unit for 2 Pole Voltage Meters 5060082542565  PU260
Proving Unit for 2 Pole Voltage Meters
Di-Log Proving Unit
for 2 Pole Voltage Meters
A portable, battery powered Proving Unit for testing Two Pole Voltage Testers up to 690V
Continuity Tester for testing: Fuses, Fused test leads etc
Additional Touch Electrode for Quick Testing of Fused Leads
Optical and Acoustic Continuity Indication
Low battery indication

  • LED Display
  • Voltage 690V DC
  • Output Current higher than 3.5mA
  • Low Battery
  • Continuity
  • Voltage Test
  • Output Voltage 690V DC
  • = 200 k? load
  • Test Current = 3.5mA
  • Continuity Test
  • Continuity Range <100?
  • Test Current Approx 1mA
  • Scope of Supply
  • 1 pc Proving Unit
  • 10 pc Batteries 1.5V AA
  • 1 pc Instruction Manual
  • Miscellaneous
  • Temperature Range: 0.40°C / Max 70% RH
  • Power Supply: 10 x 1.5V AA / LR6
  • Dimensions: 220(H) x 110(W) x 40(D) mm
  • Weight: 650g (approx)
Technical: PU260 Instructions.pdf - 96kb pdf
Order Code Description Price (ex vat) Price (inc vat) Qty
TM PU260Proving Unit for 2 Pole Voltage Meters
EA
68.00
EA
81.60
All Sold
