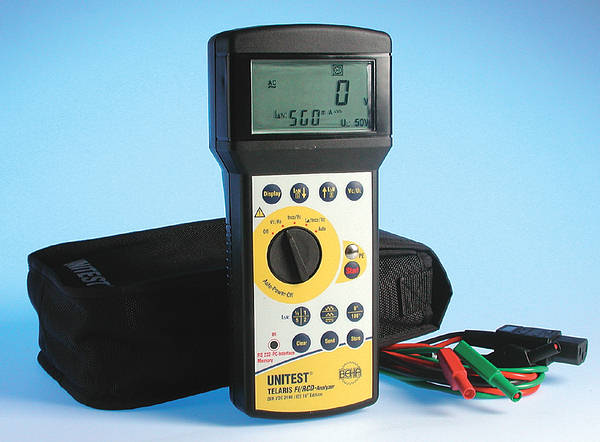

A compact and simple instrument for monitoring both 10 30, 100, 300 and 500 mA RCD devices as well as selective 100, 300 and 500 mA RCDs.
Designed for quick and easy testing of RCDs, ideal for inexperienced users.
Designed to meet the requirements of a broad number of users including electrical contractors, property owners, building firms and industry.
Test results can be stored and downloaded via the built in infra red serial port.
Designed to enable the user to monitor and control contact voltages.
Includes automatic test. The instrument will sequence through the six tests automatically.
The instrument will ramp up the current to establish the actual tripping current.
Includes an integrated energy management system with auto-power-off function to ensure
optimum battery usage.
Supplied complete with standard carrying case.
| - Display - LCD
- RCD Current - 10,30,100, 300mA (100, 300mA selective)
- Power Supply - 230V ± 10%
- Measurement Range - 10…300mA (100…300mA selective)
- Test Sequence - 10…300mA (100…300mA selective)
- Power Supply - 230V/ 1x 9V IEC 6LR61
- Safety Complying to IEC 1010
- Pollution Degree - 2
- Overvoltage Category - CAT III / 300V
- Protection - IP 50
- Auto-Power-Off - approx. 5 min
- Dimensions - 235x103x70mm
- Weight - approx. 700g
| |
|
