Digiview 8i - 8 Channel Networkable CCTV System   Digi-view8i
Digiview 8i - 8 Channel Networkable CCTV System

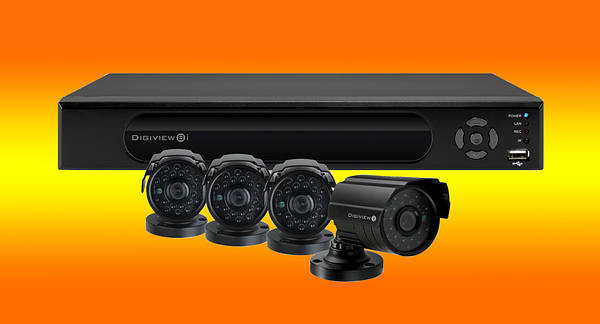

WHAT’S IN THE BOX
1 x DVR8i - 8 channel networkable DVR
1 x Integrated 500GB CCTV hard drive
4 x IRCAM40 day/night external cameras
4 x 20M shotgun cables (cameras – DVR)
1 x 5 way power supply (cameras – DVR)
1 x USB mouse
1 x Instruction manual
1 x Network software
1 x USB stick
1 x Remote control
Digiview 8 Channel Networkable CCTV System
with iphone / android remote viewing capability
Digiview8i offers a comprehensive digital CCTV solution for home or business use.
Everything is included in the box apart from the monitor giving the user the choice
to add a dedicated TFT CCTV monitor or connect to any modern television.
The cameras, suitable for exterior or interior use without any additional housing,
have built in infra red illuminators to maintain clear images up to 15m in low light conditions .


The core of the system is a state of the art DVR (digital video recorder).
The DVR is the recording and control centre of the system.
The large majority of the DVRs functions are now accessed via a mouse driven user interface
allowing the unit to be button free and therefore much less susceptible to unauthorised use .
The menu layout is very intuitive and therefore easy to work with .
Viewing images remotely is now further simplified due to a dedicated APP (Meye Pro) available for iphone/ipad and Android phones.
In addition the Digiview-8i package includes bespoke software for PC remote applications

Please note the Digiview 8i is supplied with only four cameras allowing it’s use as a 4,5,6,7or 8 camera system to the installers requirements.

  • Day/Night cameras with 15m infra red illumination
  • Cable management within cameras
  • Remote monitoring via network or internet connection
  • Triplex operation – Playback / Record / Remote view simultaneously
  • VGA or standard BNC video output
  • Four recording options – Continuous / Scheduled / Motion / Sensor
  • USB back up of recordings for easy evidence transfer
  • Mouse driven user interface
Technical: Installation & Operating Instructions and Technical Specification
Order Code Description Price (ex vat) Qty
TS DGV8KNDigiview 8i - 8 Channel Networkable CCTV System
EA
409.95
graphic
Related items you may need.
Image Order Code Description Price (ex vat) Qty
product photoTS TFT1515'' TFT LCD CCTV Monitor
EA
200.35
graphic
product photoTS TFT1717'' TFT LCD CCTV Monitor
EA
255.30
graphic
product photoTS CAB1010Mtr Dual Function BNC Connection Cable
EA
5.00
graphic
product photoTS CAB2020Mtr Dual Function BNC Connection Cable
EA
9.45
graphic
product photoTS CAB4040Mtr Dual Function BNC Connection Cable
EA
14.85
graphic
product photoTS CAB8080Mtr Dual Function BNC Connection Cable
EA
27.55
graphic
product photoTS CABCOUPBNC Coupler Kit
EA
4.80
graphic
product photoMX MOD111UHF Mini RF Modulator
EAEA 3+
26.7024.95
graphic
product photoTS IRCAM4015mtr Day / Night Camera 420 Tv Lines with 3.6mm Fixed Lens - IP65
EA
38.00
graphic
