8 Channel 250GB HDD DVR c/w DVD-RW

  part of  Digital Video Recorder DVR
Main Index   •   Technical   •   View Your Order / Checkout   •   Quick Order Entry   •   Stock Availablity   •   Delivery

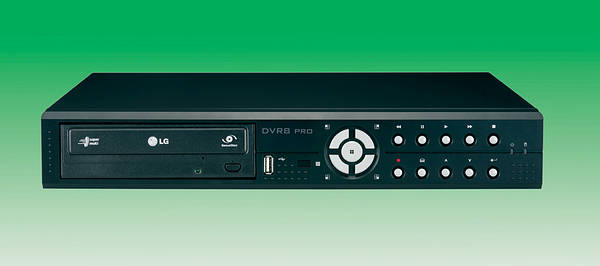

8 Channel 250GB HDD DVR c/w DVD-RW 5060224100493  DVR8PRO
8 Channel 250GB HDD DVR c/w DVD-RW
8 Channel 250GB HDD DVR c/w DVD-RW
The perfect digital recording and camera management solution for a professional 8 channel CCTV system.

These feature packed units will cover the demands of virtually all installations .
The casings are robust and compact , the controls are intuitive and the operation reliable being based around Seagate or Western digital hard drives developed specifically for the CCTV industry.

  • Will display up to 8 channels simultaneously
  • Continuous, sensor or motion detection based recording
  • USB ports for control via a mouse and for video archiving to USB memory stick
  • Video output on either composite/s-video or VGA OUT
  • Access over IP network, can be viewed remotely across the internet via dynamic or static IP
  • Triplex Operation – Simultaneous playback, recording and network access of images
  • Camera image colour adjustment (brightness, contrast, hue, saturation)
  • Audio recording
  • RS-485 control for PTZ cameras
  • Firmware can be updated via USB
  • Sensor input/alarm output terminals
  • CD/DVD Writer on PRO model
  • Infra Red Remote control
  • Event logging makes searching through recordings more convenient
Technical: Installation & Operating Instructions
Order Code Description Price (ex vat) Qty
TS DVR8PRO8 Channel 250GB HDD DVR c/w DVD-RW
EA
398.95
graphic
Related items you may need.
Day Night Cameras - Integral Infra-Red illumination
product photo

Requires Power Supply
ES PSIL
Day Night Cameras - IP65
It's fairly obvious that colours don't show up too well in the dark .
That's because coloured items are simply reflecting parts of the white light spectrum
and if there's no white light available there is nothing for them to reflect .
Not usually a problem as we use temporary white light sources at night when we wish to see what's around .
Ok for us but not so convenient for security cameras that need to be able to see in all conditions.

The answer lies with Infra-Red , a light source that is positioned at the very edge of the light spectrum .
Our eyes cannot see infra-red light but guess what , mono ( black and white ) cameras can .
Unfortunately colour cameras are designed to see light in pretty much the same spectrum
as the human eye and therefore cannot see infra-red light .
Most security camera applications would benefit from colour cameras during the day
but due to their physical restrictions they cannot see at night .

The IRCAMS have the answer . They are in effect two cameras in one ,
a vibrant colour camera during the day
that electronically converts to a crisp mono camera with built in Infra-Red illumination
as the light fades making sure the CCTV system automatically get's the best light available in all conditions .
IRCAM's are ready to install outside due to their weatherproof vandal resistant construction .
They are ideally suited for use with the ESP digital video recorders
however they are compatible with virtually any CCTV system .
Click the order code for AccessoriesTechnical: See each product
Order Code Description Price (ex vat) Qty
TS IRCAM208mtr Day / Night Camera 420 Tv Lines with 4mm Fixed Lens - IP65
EA
52.96
All Sold
TS IRCAM4015mtr Day / Night Camera 420 Tv Lines with 3.6mm Fixed Lens - IP65
EA
38.00
graphic
TS IRCAM10015mtr Day / Night Camera 420 Tv Lines with 6mm Fixed Lens - IP65
EA
60.30
graphic
TS IRCAM50025mtr Day / Night Camera 420 Tv Lines with 4mm - 9mm Varifocal Lens - IP65
EA
132.15
All Sold
TS IRCAM60030mtr Day / Night Camera 580 Tv Lines with 4mm - 9mm Varifocal Lens - IP66
EA
115.60
graphic
TS IRCAM70050mtr Day / Night Camera 580 Tv Lines with 9mm - 22mm Varifocal Lens - IP66
EA
128.64
graphic
TS IRCAM90050mtr Day / Night Camera 480 Tv Lines with 6mm - 50mm Varifocal Lens - IP66
EA
180.90
graphic
TS IRCAM100050mtr Day / Night Camera 560 Tv Lines with 5mm - 50mm Varifocal Lens - IP66
EA
199.00
graphic
ES PSIL1 Amp In Line Camera Power Supply
EA
15.90
graphic
Dome Cameras
product photo
Dome Cameras
Click the order code for AccessoriesTechnical: IP Rating Chart, Lens Size Calculator and Installation & Operating Instructions
Order Code Description Price (ex vat) Qty
TS MICRODOMEInternal Colour Camera 420 Tv Lines with 3.6mm Fixed Lens
EA
39.95
graphic
TS IRDOME8mtr Internal Day / Night Camera 420 Tv Lines with 4mm Fixed Lens
EA
46.00
graphic
TS DOMEVFInternal Colour Camera 420 Tv Lines with 4 to 9mm Varifocal Lens
EA
64.00
graphic
TS IRDOMEXT8mtr External Day / Night Camera 420 Tv Lines with 4mm Fixed Lens - IP65 ( --- Price Cut --- )
EA
67.34
graphic
TS IRDOMEXTVF30mtr External Day / Night Camera 580 Tv Lines with 4 to 9mm Varifocal Lens
EA
135.65
graphic
Image Order Code Description Price (ex vat) Qty
product photoTS TFT1515'' TFT LCD CCTV Monitor
EA
200.35
graphic
product photoTS TFT1717'' TFT LCD CCTV Monitor
EA
255.30
graphic
product photoTS CAB1010Mtr Dual Function BNC Connection Cable
EA
5.00
graphic
product photoTS CAB2020Mtr Dual Function BNC Connection Cable
EA
9.45
graphic
product photoTS CAB4040Mtr Dual Function BNC Connection Cable
EA
14.85
graphic
product photoTS CAB8080Mtr Dual Function BNC Connection Cable
EA
27.55
graphic
product photoTS CABCOUPBNC Coupler Kit
EA
4.80
graphic
product photoMX MOD111UHF Mini RF Modulator
EAEA 3+
26.7024.95
graphic
