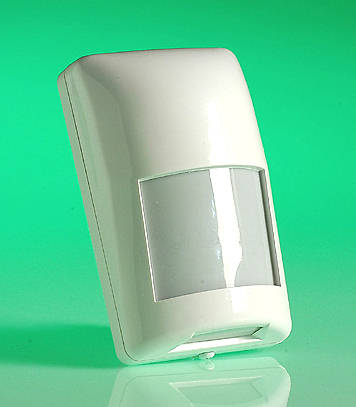

Dual Technology Motion Sensor 12m MICROX
Dual Technology Motion Sensor 12m

Dimensions: 127 x 71 x 56mm
Dual Technology Motion Sensor 12m
Microwave and PIR Detector
The best of both worlds, combining a modern microwave detector
and the most advanced PIR detector.

Eliminates false alarms because it needs both movement & heat to trigger an alarm.
Microwave detects air changes caused by moving objects,
PIR detects heat sources against background heat.


  • Operating Voltage: 9 - 16VDC
  • Current Consumption: Standby 26mA@12VMax. (Alarm) 43mA@16V
  • Coverage: 12m x 12m
  • Pulse Count: 1 or 2 selectable
  • Pyroelectric Sensor: Dual element
  • Microwave Antenna: Built-in patch
  • Microwave Frequency: 10.525, 10.687, 9.9 or 9.3GHz
  • Alarm Output: N.C., dry contacts
  • Switching Voltage: 30VDC not to exceed 10W
  • Switching Current: 0.3A not to exceed 10W
  • Alarm Duration: 2 seconds
  • Tamper Switch: N.C.
  • Contact Rating 30VDC, 50mA max.
  • Operating Temperature: -10° to 60°C
  • Temperature Compensation: Thermistor
  • Reverse Polarity Protection: Diode
  • Fire Protection: ABS plastic housing
  • LED Indicators: Selectable
  • Dimensions: 127 x 71 x 56mm
Technical: Installation & Operating Instructions
Order Code Description Price (ex vat) Qty
TS MICROXDual Technology Motion Sensor 12m
EAEA 3+
16.5015.45
graphic
Related items you may need.
Image Order Code Description Price (ex vat) Qty
product photoCA LV66 Core Alarm Cable
per Mper 100M
0.2914.15
graphic
product photoTS MB2Optional Pir Mounting Bracket
EA
0.50
graphic
