Optima Compact G4 Alarm Panel - 8EP396A   8EP396A
Optima Compact G4 Alarm Panel - 8EP396A

Dimensions
H:200 x W:253 x D:55mm


Please Note:
Backup batteries are not supplied with Alarm Panels
See related items below

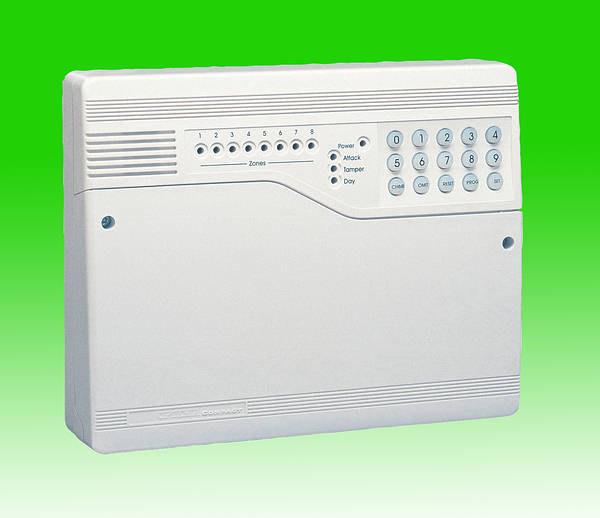

Optima Compact G4 Alarm Panel
with ADE Optima Compact G4 Alarm Panel from Honeywell
you are guaranteed a highly featured, flexible
intruder alarm panel, conforming to CE
specification directives and BS4737 standards.

  • 8 Zones
    Each one is separately identified on the keypad and provides ample security detection for most domestic properties.
  • 3 part set programs
    Allows three programmed setting levels dependent on the people in the property or the level of protection required, eg. night-time with upstairs detectors off and perimeter detectors on.
  • Simple set readers for ease of operation - Optional
    Up to 4 stylish readers can be used to SET/UNSET the system with the option of using a proximity keyfob. Ideal for young, elderly or infirm.
  • Personal attack facility
    PA buttons may be used to activate the system in an emergency. An additional PA facility exists on the remote keypads.
    Remote keypads for added flexibility Up to four slimline keypads can operate the system from any point in the property.
  • New LCD Keypad - Optional
    The LCD remote keypad operates with the Optima Gen4 intruder systems.
    Up to four LCD keypads can be connected to the system. The large 2x16 characters with backlight display provide a full status indication and the keypad plays entry and exit tones.
  • Fire Zone
    Zones 7 and 8 may be programmed as a 24 Hour Fire Zone operating all of the time except during engineer mode.
  • 250-event log
    The last 250 events to have occurred are stored in the memory and can be displayed, with their date and time, on the LCD remote keypad screen.
  • Duress Code
    Allows the user to unset the system and silence the alarm under duress, using a second code that will communicate an alarm to an Alarm Receiving Centre.
  • Chime
    Can be used to select a low security chime alarm for various areas of your house, even when the main alarm is turned off. When a door is opened or a detector triggered in an area set to chime, the control panel will deliver a low-volume ‘bing-bong’ sound to alert you. This is ideal for areas that require low level monitoring.
  • Zone names selectable from the library
    A new option accessible from the LCD remote keypad allows the installer to assign descriptors from a 22-name library to each of the eight zones.
  • Built-in tamper control
    To protect all wiring and detectors in the system from an authorised access including the control panel and remote keypad covers.
Technical: Specification / Installation / Operating Manual
Order Code Description Price (ex vat) Price (inc vat) Qty
TS OPTCG4Optima Compact G4 Alarm Panel - 8EP396A
EA
35.25
EA
42.30
graphic
