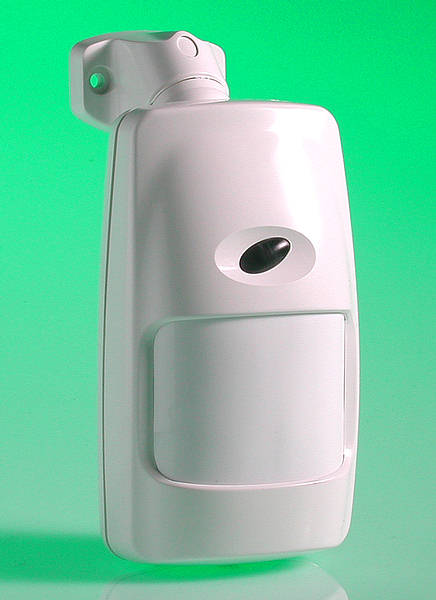

The LEGACY is a wireless, microprocessor-controlled, 9V battery-operated, low-current PIR motion detector. Following detection, the LEGACY transmits for two seconds, then disarms itself to save battery power. The detector re-arms itself automatically two minutes after the last movement has been detected. For convenience, a unique TEST/NORMAL selector is used to override the two-minute re-arm timer during walk-testing.
FEATURES
* Microprocessor-controlled
* 9V battery operated, with unique energy-saving circuitry
* Extremely low current consumption
* Automatic low battery and tamper alerts
* Programmable pulse counter
* Two-position vertical adjustment
* Rejects RF interference up to 1000 MHz
* White light protection
* Programmable 8-bit system code and 4-bit channel code
* Integral swivel bracket for wall or ceiling installation
* Can be surface or corner mounted
* Attractive, sturdy housing
| - OPTICAL
- Detection Pattern: 90° wide-angle lens with 36 beams in 3 detection layers.
- Max. coverage: 15 x 15 m (50 x 50 ft)
- Adjustment: 2-position vertical adjustment: FAR and NEAR
- ELECTRICAL
- Voltage: 9V alkaline or lithium battery
- Standby Current: 0.013 mA
- LED: Walk-test/transmission
- Detector: Dual-element low-noise Pyroelectric sensor
- Pulse Counter: Programmable to 1, 2, 3 or 5 pulses with walk-test override
- Re-arm Timer: Re-arms the unit about 2 minutes after last alarm; timer is disabled in the walk-test mode
- ENVIRONMENTAL
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- RFI Protection: > 30 V/m up to 1000 MHz
| - WIRELESS
- Frequency (MHz): 315, 304, 404, 418, 433.92 according to local requirements
- Alarm Transmission Duration: 2 seconds
- Encoding: 8-bit digital word, 256 combinations, pulse width modulation
- Channels: 4 channels, switch selectable
- Battery Test: Automatic transmission of "Code 0" at 2-minute intervals if battery voltage drops below 7V
- Tamper Alert: Transmission of the "Channel 2" code at 2-minute intervals, until tamper switch is restored
- MOUNTING
- Height: Up to 3.6 m (12 ft)
- Room Size: Up to 15 m (50 ft) in the "FAR" position
- 2 - 8 m (6 - 24 ft) in the NEAR position
- Installation Options:
- Surface or corner (without bracket); surface or ceiling (with bracket)
- Bracket Adjustment: 20 downward, 20 left and right
- PHYSICAL
- Dimensions (H x W x D): 117 x 65 x 47 mm (4-5/8 x 2-9/16 x 1-7/8 in)
- Weight: 92 g (3.25 oz) without bracket, 107 g (3.8 oz) with bracket
- Color: White
|
|
