2 Gang 2 Way 600w Master Remote Control Dimmer (Twin Plate) - Piano Black 5021575055580  Varilight IDLi602MS

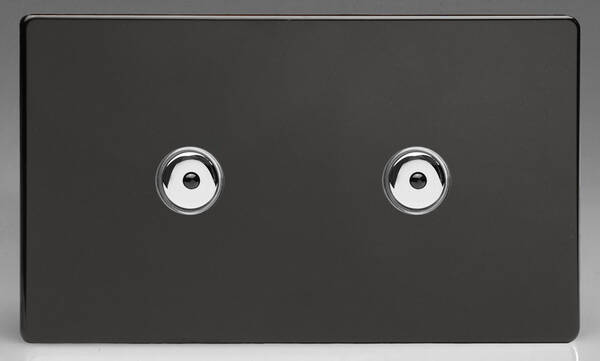

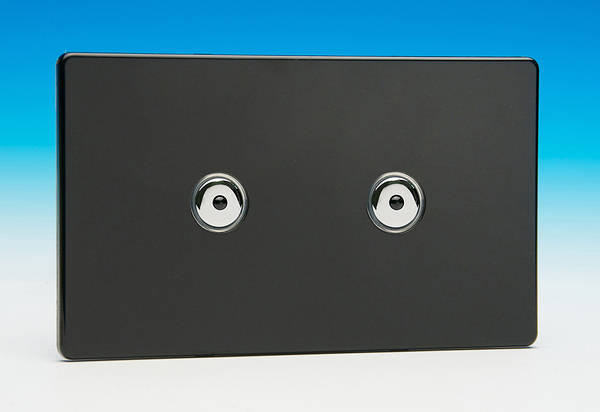

2 Gang 2 Way 600w Master Remote Control Dimmer (Twin Plate) - Piano Black

Minimum Load - 60 watts
Dimension Screwless
2 Gang 2 Way 600w Master Remote Control Dimmer (Twin Plate)
Piano Black
Dimension Screwless
Piano Black Flat Plate Accessories
"High Gloss Polycarbonate"
Ultimate in Minimalism for Modern Living Spaces

A revolutionary new range of touch and remote control dimmer switches.

A touch sensitive button in the centre of the plate and a tiny lens in the centre of the button
so as to not spoil the overall look of the product.

You can dim the lights using touch control or remotely .
The master dimmer switches are one way but can be used in conjunction with slave units
in a multi-way circuit (including intermediate and 2 way)
so that the lights can be dimmed from more than one location.

In this type of circuit you should use one master dimmer and any number of slave units
with three wires directly connecting each switch (as is usual in a 2 way circuit).

The low-priced slave units are not dimmer switches
and cannot be used on their own without a master dimmer.

  • Using trailing edge technology, they can be used for mains or low voltage lighting.
  • Remote control sold separately
  • The front plate is removable which makes decorating & painting easier.
  • Like the IQ dimmers it also has a soft start to extend lamp life and overload protection with automatic reset.
  • In learning mode, it can be taught any button of most existing infra-red remote controllers.
  • (Full clear instructions with diagrams are included with the product)
Technical: Dimmer Selection Guide .PDF (50kb), iQ Dimmer Info - pdf 90kb and Installation and Wiring Details
Order Code Description Price (ex vat) Price (inc vat) Qty
VL IDL1602MS2 Gang 2 Way 600w Master Remote Control Dimmer (Twin Plate) - Piano Black
EAEA 3+
35.5034.50
EAEA 3+
42.6041.40
graphic
Related items you may need.
Image Order Code Description Price (ex vat) Price (inc vat) Qty
product photoVL YRC8Optional 8 Button Remote Control
EAEA 3+
4.754.50
EAEA 3+
5.705.40
graphic
product photoVL IDLS001S1 Gang Slave for Remote Control/Touch Dimmer - Piano Black
EAEA 3+
8.508.25
EAEA 3+
10.209.90
graphic
product photoVL IDLS002S2 Gang Slave for Remote Control/Touch Dimmer - Piano Black
EAEA 3+
15.5015.00
EAEA 3+
18.6018.00
graphic
product photoAP 6252 Gang 35mm KO Flush Box
EAEA 10+
0.650.60
EAEA 10+
0.780.71
graphic
product photoGR 2020mm Open Grommets
EAEA 100+
0.100.04
EAEA 100+
0.120.04
graphic
product photoDL TSB28B2 Gang 28mm Surface Box - Black
EAEA 10+
1.521.35
EAEA 10+
1.821.62
graphic
product photoMT MDLB22 Gang 35mm Dry Lining / Plaster Board Box
EAEA 10+
1.161.00
EAEA 10+
1.391.20
graphic
product photoFB 42352 Gang 35mm Fire & Acoustic Metal Dry Lining Box
EAEA 5+
2.952.55
EAEA 5+
3.543.06
graphic
