Compact Push Wire Connector 4mm² - 4 Way
Product Code: WA 404
4055143918985
2773-404
Loading …
Wago 2773-408 Compact Transparent
4 Pole Push Wire Connector - Red Cover
0.75mm² - 4.0mm² Solid
1.5mm² - 4.0mm² Stranded
4 Pole Push Wire Connector - Red Cover
0.75mm² - 4.0mm² Solid
1.5mm² - 4.0mm² Stranded

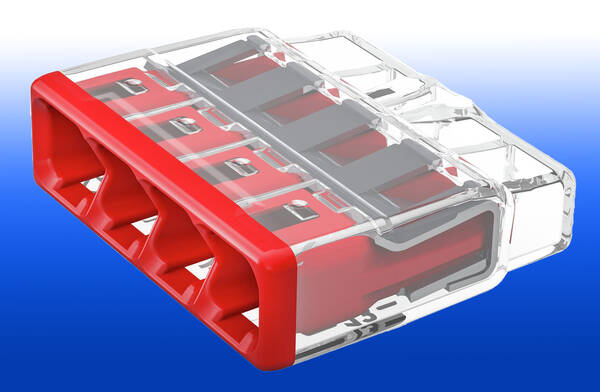

COMPACT splicing connector with transparent housing for solid and stranded conductors.
Solid or stranded conductors are inserted into the connector by simply pushing them in.
The transparent housing provides a visible indication that the conductor is secure.
There is a test point located in the base of the housing. To remove the connector simply pull on the conductor whilst twisting the connector block alternatively left and right - the connector can then be reused.
Thanks to their flat and compact design, these connectors are ideal for wiring in flush-mount switch boxes.
Solid or stranded conductors are inserted into the connector by simply pushing them in.
The transparent housing provides a visible indication that the conductor is secure.
There is a test point located in the base of the housing. To remove the connector simply pull on the conductor whilst twisting the connector block alternatively left and right - the connector can then be reused.
Thanks to their flat and compact design, these connectors are ideal for wiring in flush-mount switch boxes.
- Convenient wiring via extremely compact design
- Conductor range: 0.75-4mm² solid and 1.5-4mm² stranded cables
- Any combination of conductor sizes is possible
- PUSH WIRE® connection terminates solid (“s+str”) copper conductors
Technical:WA404 Datasheet - 605kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WA 404
Compact Push Wire Connector 4mm² - 4 Way |
