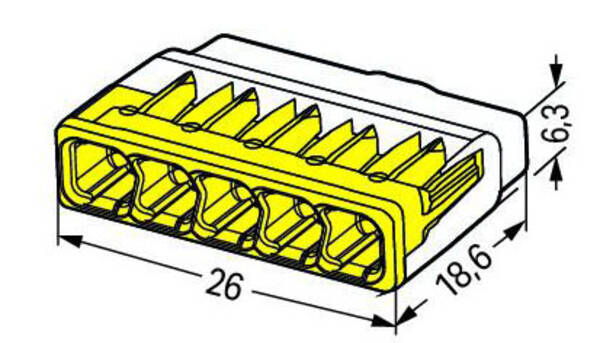

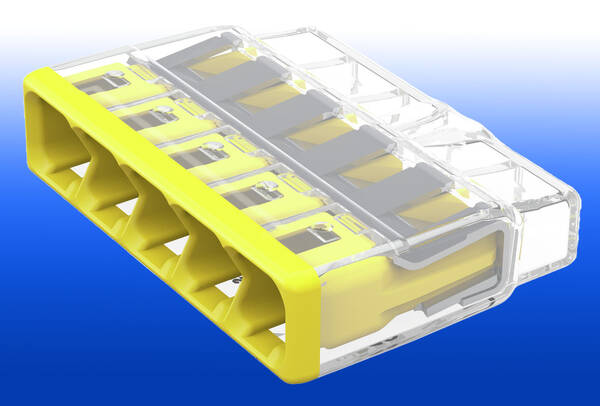

Compact Push Wire Connector 4mm² - 5 Way
Product Code: WA 405
4055143919241
2773-405
Loading …
Wago 2773-408 Compact Transparent
5 Pole Push Wire Connector - Yellow Cover
0.75mm² - 4.0mm² Solid
1.5mm² - 4.0mm² Stranded
5 Pole Push Wire Connector - Yellow Cover
0.75mm² - 4.0mm² Solid
1.5mm² - 4.0mm² Stranded
COMPACT splicing connector with transparent housing for solid and stranded conductors.
Solid or stranded conductors are inserted into the connector by simply pushing them in.
The transparent housing provides a visible indication that the conductor is secure.
There is a test point located in the base of the housing. To remove the connector simply pull on the conductor whilst twisting the connector block alternatively left and right - the connector can then be reused.
Thanks to their flat and compact design, these connectors are ideal for wiring in flush-mount switch boxes.
Solid or stranded conductors are inserted into the connector by simply pushing them in.
The transparent housing provides a visible indication that the conductor is secure.
There is a test point located in the base of the housing. To remove the connector simply pull on the conductor whilst twisting the connector block alternatively left and right - the connector can then be reused.
Thanks to their flat and compact design, these connectors are ideal for wiring in flush-mount switch boxes.
- Convenient wiring via extremely compact design
- Conductor range: 0.75-4mm² solid and 1.5-4mm² stranded cables
- Any combination of conductor sizes is possible
- PUSH WIRE® connection terminates solid (“s+str”) copper conductors
Technical:WA405 Datasheet - 512kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WA 405
Compact Push Wire Connector 4mm² - 5 Way |
