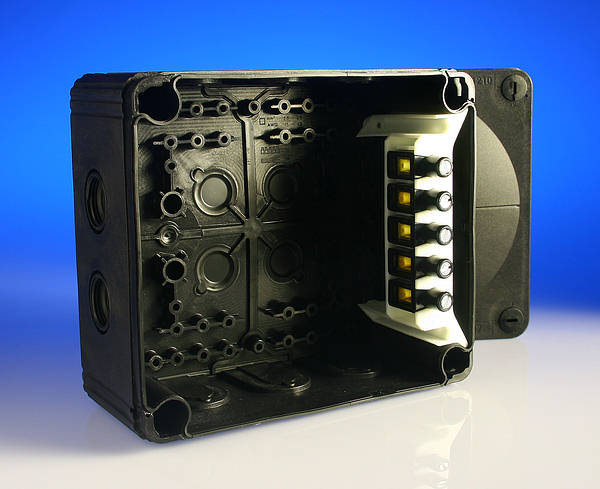

57 Amp Wiska 1210 Junction Box 160 x 140 x 81mm - Black IP66/67
Product Code: WK 1210B
4007685016650
10101463
Loading …
8 x 4.0mm
6 x 6.0mm
3 x 10.0mm
Optional Magic Sealing Gel
The sealing technique ensures a high life expectancy even under permanent influence of moisture
Empty Box Volume: 1ltr + 250ml
IP68 up to a water depth of 15 meters according to DIN EN 60529
Wiska Box IP66
160 x 140 x 81mm - Black
57 Amp
160 x 140 x 81mm - Black
57 Amp
Captive quick release screws that can't be lost.
The quick-release lid screws made of plastic will not rust and stay
securely in place just where they belong - in the WISKA COMBI Box.
The 'Designer Box'. The WISKA COMBI with its unmistakeable
'bellied' lid provides the utmost in visual and functional perfection.
Now you can install with system AND with style.
- IP 66/67 - EN 60 529
- Flame Protection: Glow wire test 750C acc. to EN 60695-2-11
- Temperature: -30C up to 100C
- Voltage: 690V
- There are 10 threaded 20mm entries on the unit with pierceable membrane. These can also be knocked out for use with 25mm gland and locknut
- Material: Polypropylene, reinforced
- Terminal: 5 pole (10mm)
- IP 66 membrane entries
- 10% more room inside, thanks to the bellied cover
- 30% saving on labour thanks to faster cable-entry
- captive quick-release lid screws
- Strong
Stable, safe and secure. The WISKA COMBI with its high IP 66 Degree of Protection is weather-proof, impact-resistant and shatter-proof. Eminently suitable for extreme conditions or for outdoor installations. - All WISKA COMBI Boxes are flame-retardant, halogen free, and are highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong and weak alkaline solutions, or alcohol.
8 x 4.0mm
6 x 6.0mm
3 x 10.0mm
Optional Magic Sealing Gel
The sealing technique ensures a high life expectancy even under permanent influence of moisture
Empty Box Volume: 1ltr + 250ml
IP68 up to a water depth of 15 meters according to DIN EN 60529
Technical:IP Rating Chart Wiska Gel Solutions.pdf 850kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WK 1210B
57 Amp Wiska 1210 Junction Box 160 x 140 x 81mm - Black IP66/67 |
